300M RT 5572 Dual band USB Wifi dongle Support Android, Linux, Windows
Model: FX-5572N
* EEE802.11a/b/g/n,IEEE802.11e(wmm),IEEE802.11i(wpa,wpa2),IEEE802.11Htpc,IEEE802.11K,WAPI standard
* Support 2T2R and 2.4GHz/5Ghz dual frequency
* Wireless transmission rate up to 300Mbps(802.11n),according the Internet condition to adjust wireless rate automatically
* Support 20MHz/40MHz bandwidth
* Search Internet and change transmission rate automatically
* Provide two work mode: Infrastructure and Ad-Hoc
* Downward compatability 802.11g/n Internet device
* Support WPA,WPA2 encryption and security authentication mechanism, China LAN security standard
* Use Roaming technology, promise high effective wireless connect
Support WMM, let your video more fluent
Specifications:
|
System requirement |
Vista/Win7/Vista/Linux/Mac/win8/Windows XP operate system |
|
Agreement standard |
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b
|
|
Port |
USB 2.0 |
|
Power |
600mW |
|
Antenna
|
Integrated |
|
Size
|
64mmx18mmx4mm
|
|
Wireless transmission rate |
11n:6.5-72.2Mbps(20MHzBandwidth).13-300Mbps(40MHZ Bandwidth).11g:54,48,36,24,18,12,9,6Mbps. 11b:11,5.5,2,1Mbps. 11a:54,48,36,24,18,12,9,6Mbps
|
|
Wireless frequency rate range |
2.4G:2.414GHz-2.483GHz; 5G:low frequency range 5.15GHz-5.25GHz,Middle frequency range 5.25GHz-5.35GHz;High frequency rate 5.725-5.825GHz
|
|
Work channel |
2.4G:1-14,5G:low frequency range:36-64(8 channel),Middle frequency range:100-140(11 channel),high frequency range:149=165
|
|
Power |
16dBm(Max)
|
|
EVM |
-28dB
|
|
Accept |
300Mbps:-65dBm@10% PER;108Mbps:-70dBm@10% PER;54Mbps:-72dBm@10% PER;11Mbps:-87dBm@8% PER; 6Mbps:-90dBm@10% PER;1Mbps:-92dBm@8% PER
|
|
Wireless security |
Meets 64/128-bit WEP, WPA, and WPA2 and 802.1x security standards
|
|
Use condition |
work temperature: -20°C-50°C Storage temperature:-40°C-70°C Work humidity:10%-90%RH non-condensation Storage humidity:5%-90% non-condensation
|

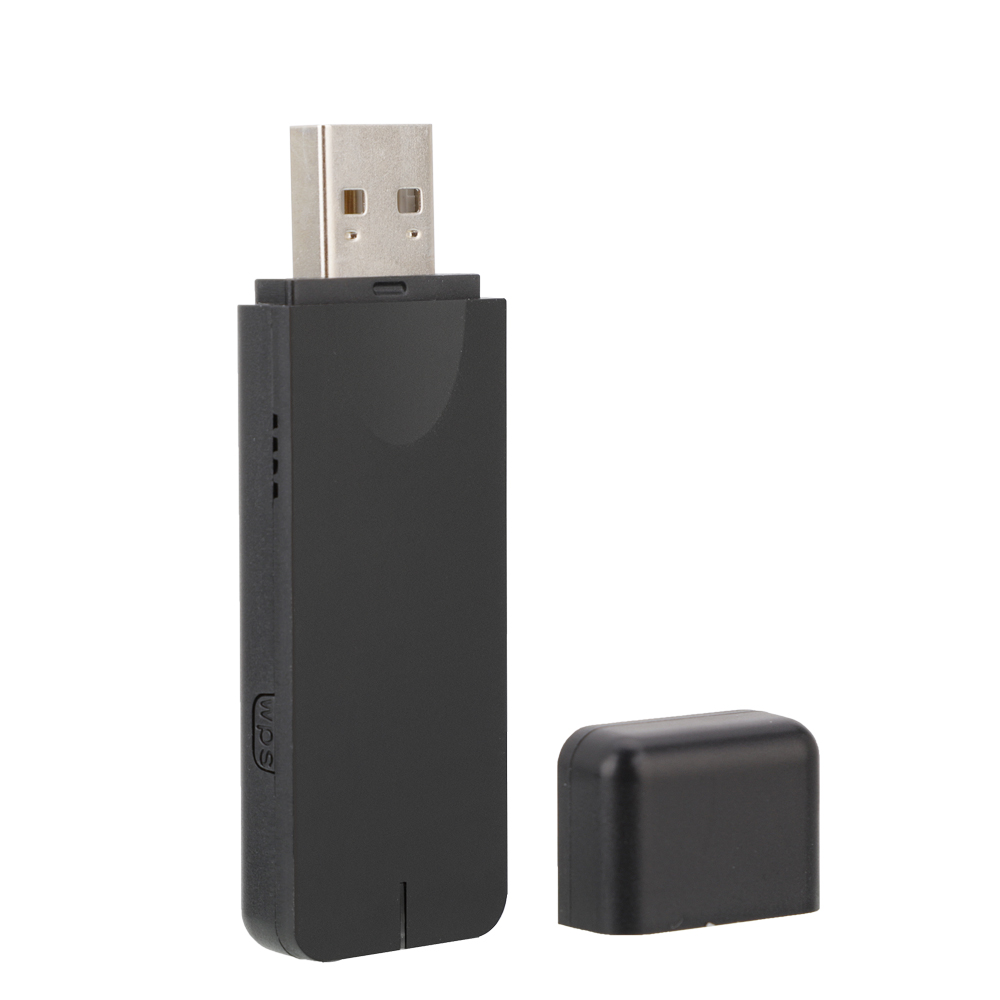

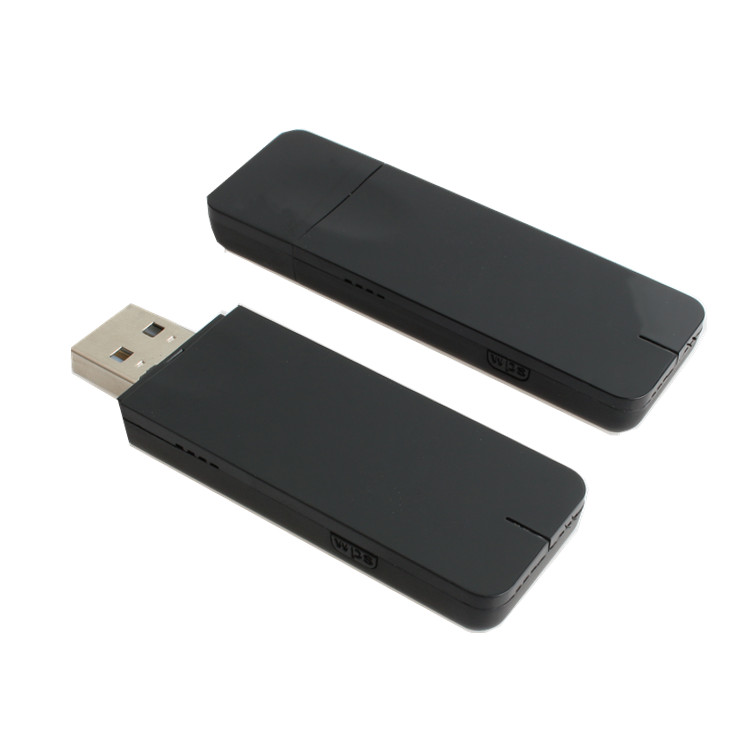

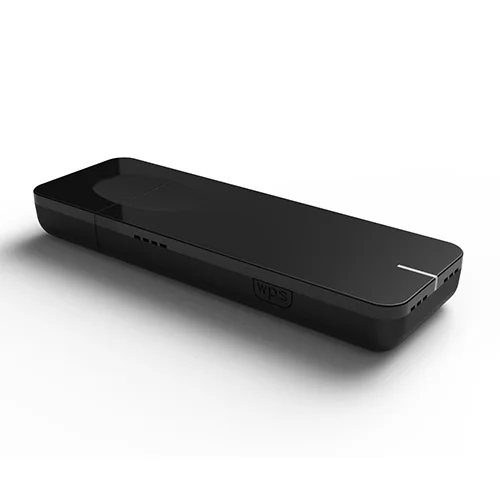

Product pictures:
