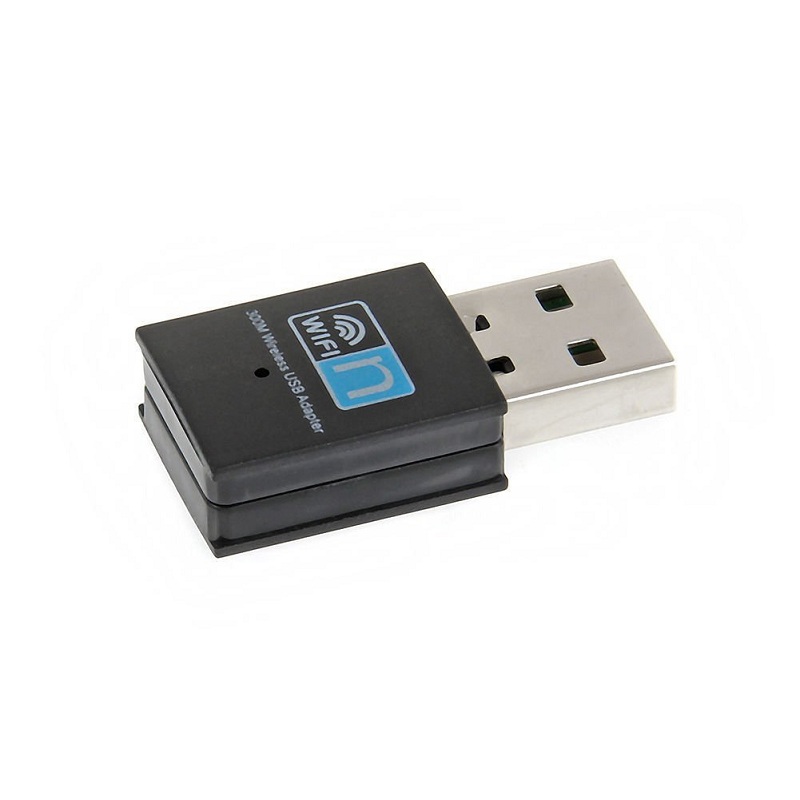

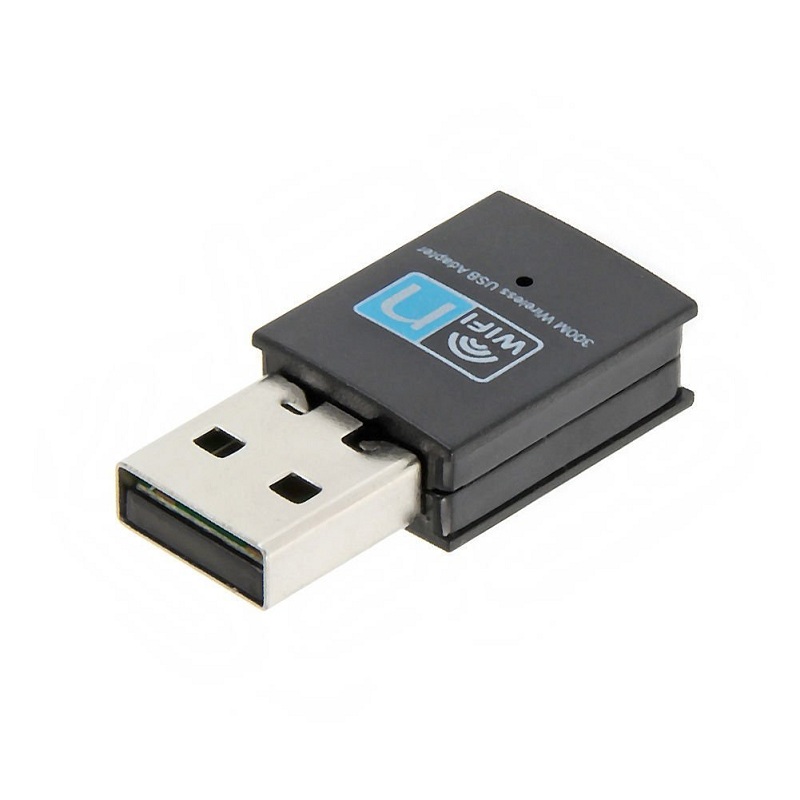

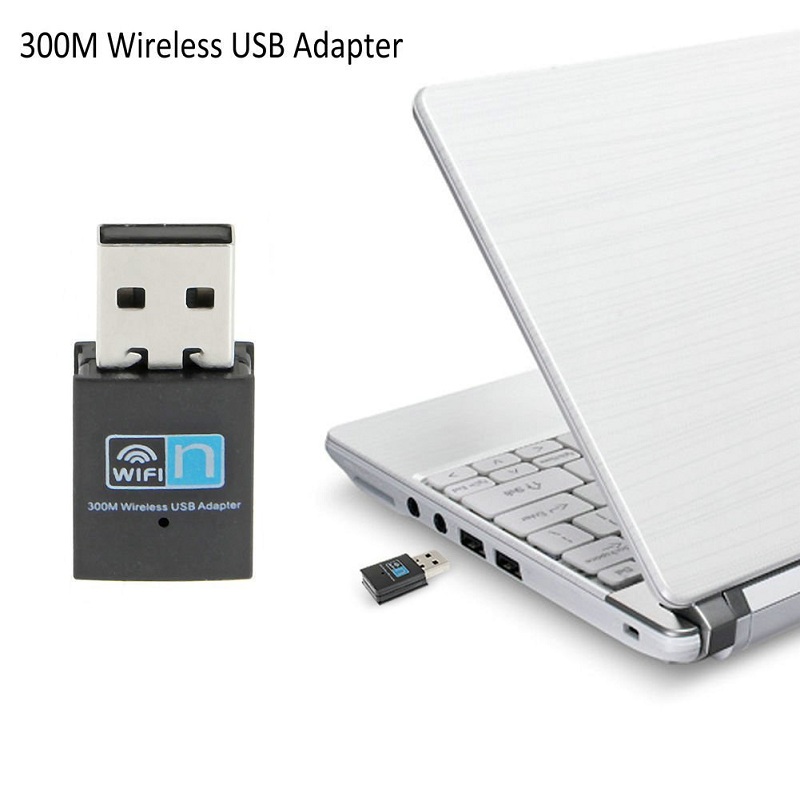

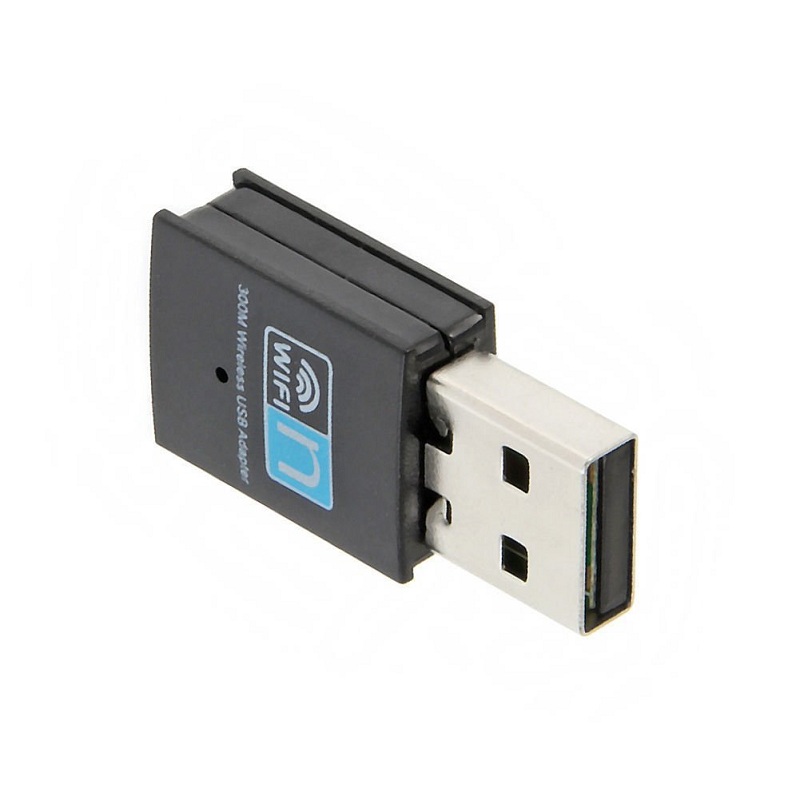

Realtek 8192 300Mbps Mini USB Wireless Adapter
300Mbps Standard USB Adapter
Chipeset: Realtek 8192CU/EU
Host interface : USB 2.0/1.1
Peak throughput : 300Mbps
Antenna : Build in antenna
Frequency: 2412~2484 mhz
Operation system: Windows ME/98SE/2000/XP/Vista;Linux;MAC , Windows 7 8/10
1. General description:
Realtek RTL8192cu/eu Chipset
* Mini portable USB 2.0 design.
* Wireless N speed up to 300Mbps, ideal for internet surfing and online gaming.
* Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards.
* Provides two work modes: Infrastructure and Ad-Hoc.
* 2T2R MIMO technology makes wireless transmission rates up to 300Mbps wifi antenna.
* 300Mbps Wireless Wifi USB Dongle/Wireless USB Adapter/Wireless Network Card
* CCA technology enhances your signal stablility by automatically avoiding channel conflicts.
* Quick secure setup, complies with WPS for worry free wireless security.
* Supports 64/128-bit WEP, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions.
* Supports Windows 2000/XP/Vista/Linux/ Win 7/Win8/10/Mac OS operating system.
2. Datasheet and Specification:
|
Software Specification |
|
|
IEEE 802.11n,IEEE 802.11g, IEEE 802.11b |
|
|
Wireless Speed |
11n: Up to 300Mbps 11g: Up to 54Mbps 11b: Up to 11Mbps |
|
Frequency Range |
2.4-2.4835GHz |
|
Wireless Transmit Power |
20dBm(MAX EIRP) |
|
Modulation Type |
OFDM/CCK/16-QAM/64-QAM |
|
Receiver Sensitivity (without Standards antenna) |
300M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
|
Work Mode |
Ad-Hoc Infrastructure |
|
Wireless Security |
64/128 bits WEP WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
|
Support Operating System |
Windows 2000/XP/Vista/Linux/ Win 7/Win8 |
|
Hardware Specification |
|
|
Interface |
USB2.0 Hi-Speed connector |
|
Certifications |
CE, Rohs |
|
Operating Temperature |
0oC~40oC (32oF~104oF) |
|
Storage Temperature |
-40oC~70oC (-40oF~158oF) |
|
Relative Humidity |
10% ~ 90%, non condensation |
|
Storage Humidity |
5%~90% non-condensing |
|
Dimensions |
Meas: 60*24*8mm(L*W*H) |
