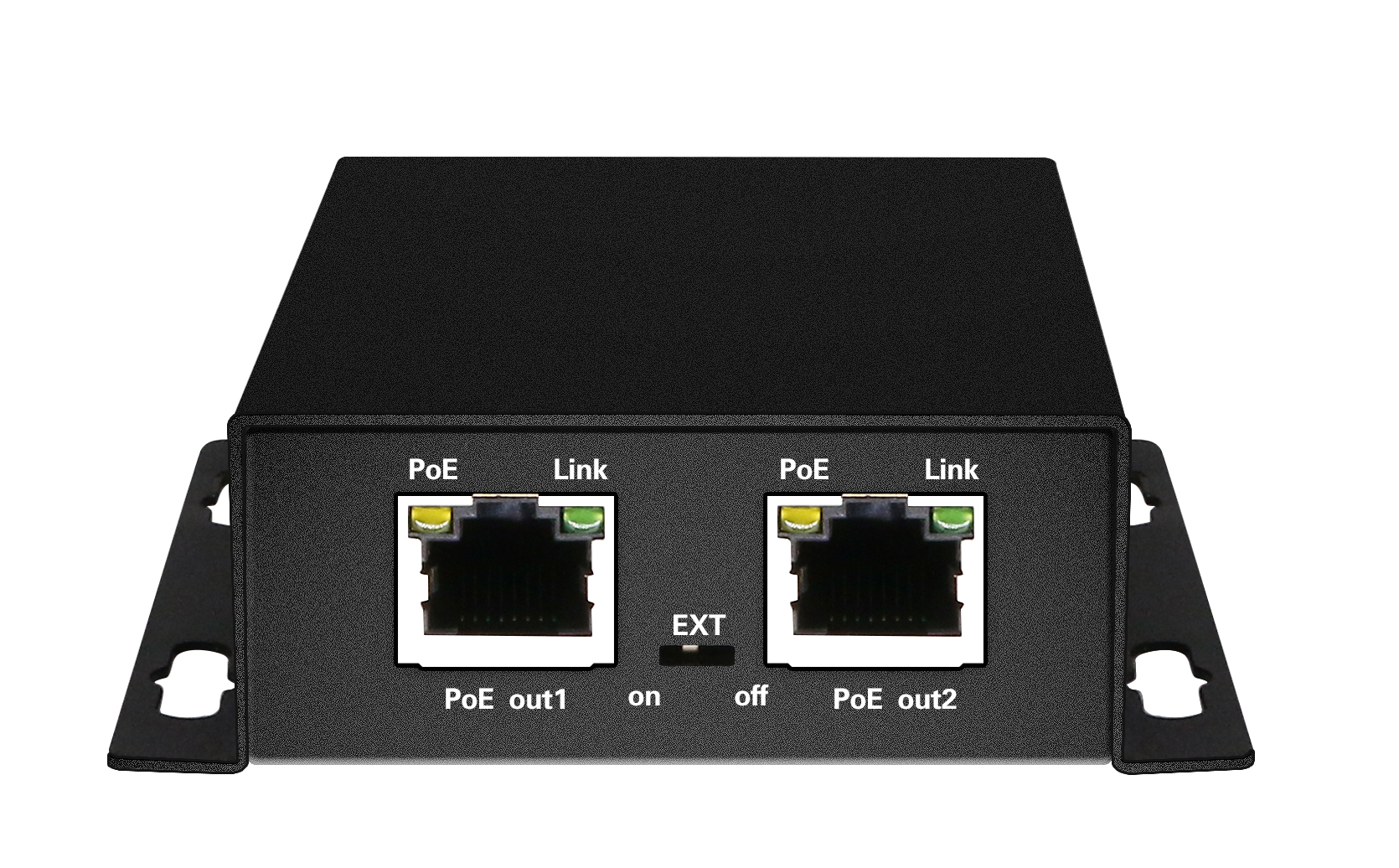

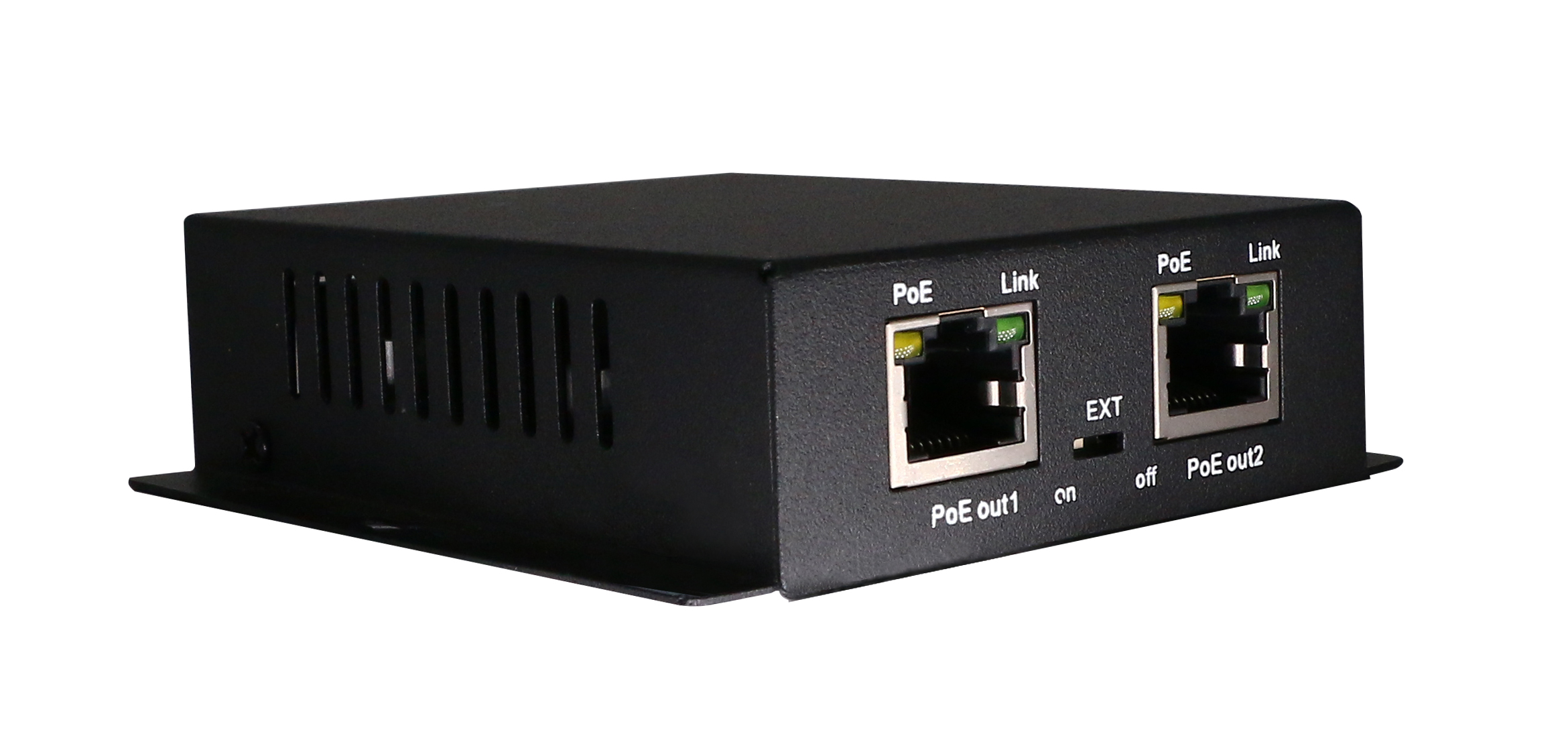

2 Port Gigabit PoE Switch Network Extender with PSE/PD Port for CCTV/TELECom

Chipset

Realtek 8376N

PoE Input Port

Supports 1/2(+)，3/6(-)；4/5(+)，7/8(-)

MAX Input Power 30W(Optional 65W)

PoE Output Port

Supports IEEE802.3af/at

MAX Output Power30W

Dc in

1：Default:No Power

2：Optional 12V 0.5A as network extender

3：Optional 52V 0.5A power can be used as single port PoE Switch

Watt

Standby Power Consumption：≤3W；

Full-load Power Consumption：≤30W；

Fixed Network Port

1*PoE Input port，10/100/1000M Rj45

2*PoE Output port，10/100/1000M Rj45

DC In

As Network Extender： DC9-57V MAX 0.5A

As PoE Network Extender：DC37-57V MAX 0.5A

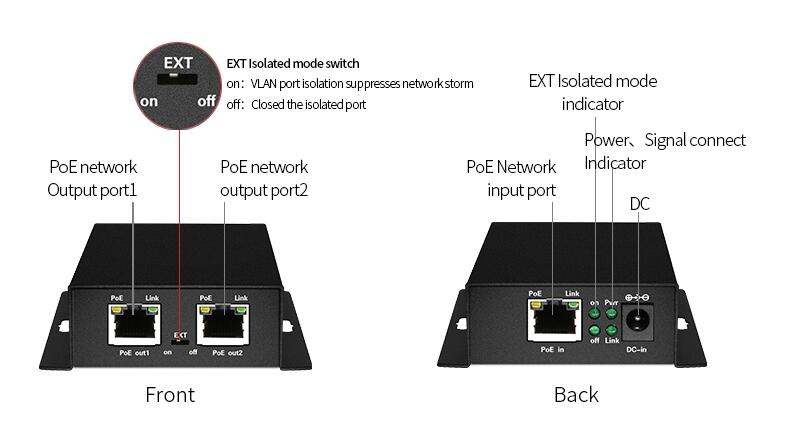

Function

EXT(Port Isolation)

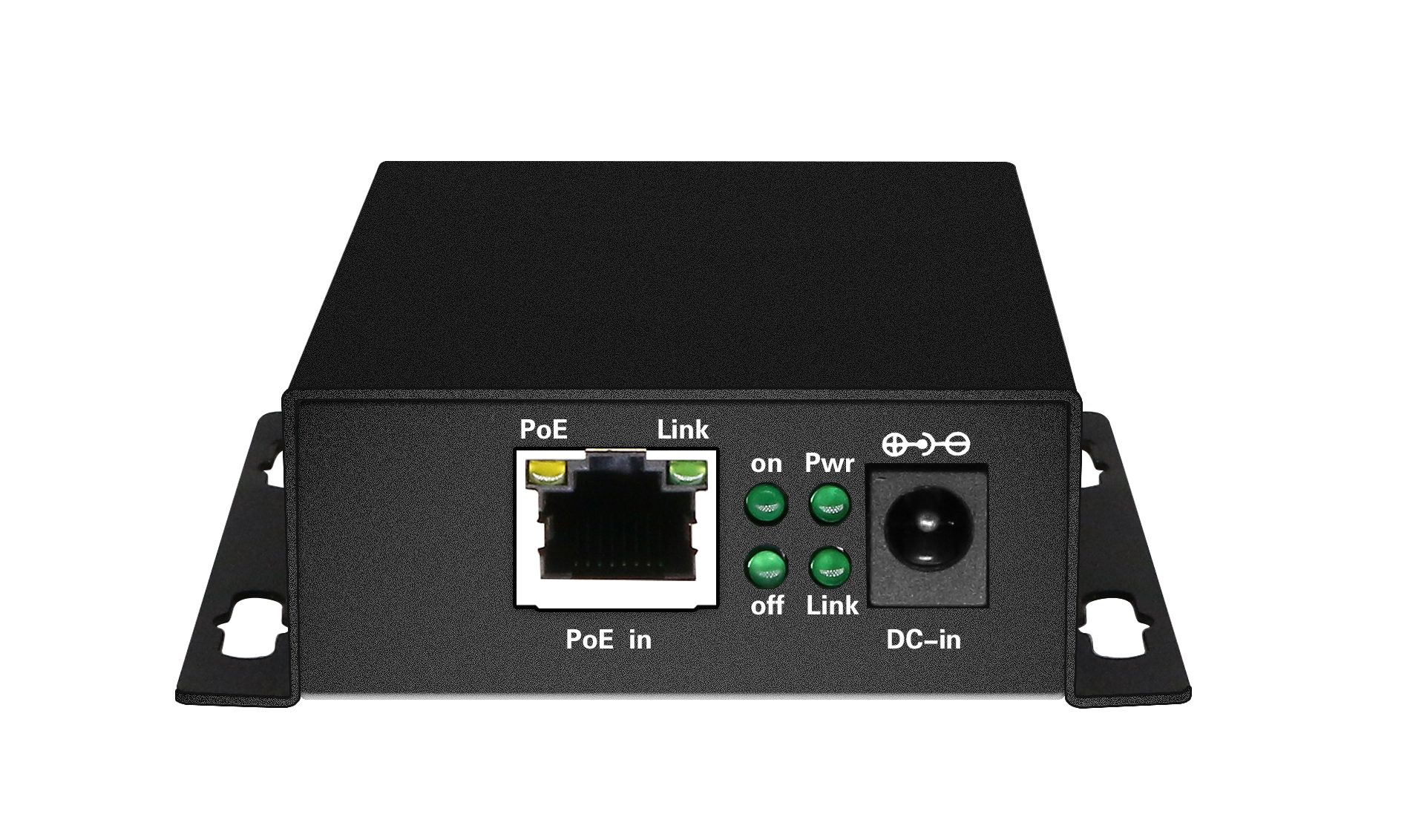

LED Indicator

Pwr:Power LED

Port：（Green=Link LED+Orange=PoE LED）

ON/OFF:（ EXTFunction LED）

Link:(Link LED=10/100M Link、1000M=Gigabit Link)

Network Protocol

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab1000BASE-T

IEEE 802.3x

IEEE 802.3af/at

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

1Gbps

Packet Forwarding

7.2Mpps

MAC Address

2K

Buffer

2.5M

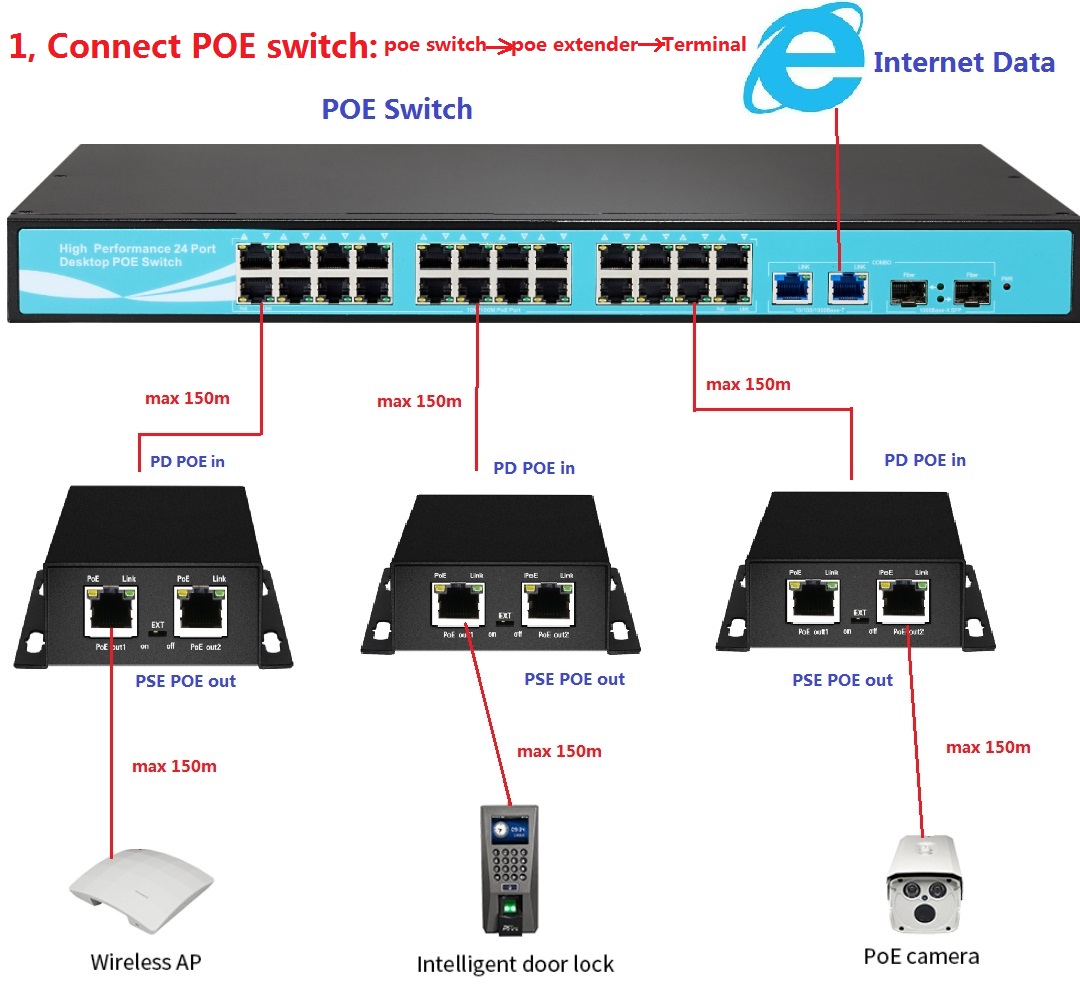

Transmission Distance

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

1000BASE-TX ： Cat6 or later UTP(150 meter)

Operating Temperature/Humidity

-10～+55°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+75°C；5%～95% RH Non coagulation

Product size/Packing size（L*W*H）

70mm*85mm*25mm

105mm*105mm*63mm

N.W/G.W（kg）

0.15kg/0.2kg

Installation

Desktop

Lightning protection level

3KV 8/20us；

IP30

Certificate

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Warranty

Whole device for 1 year(Accessories not included)
