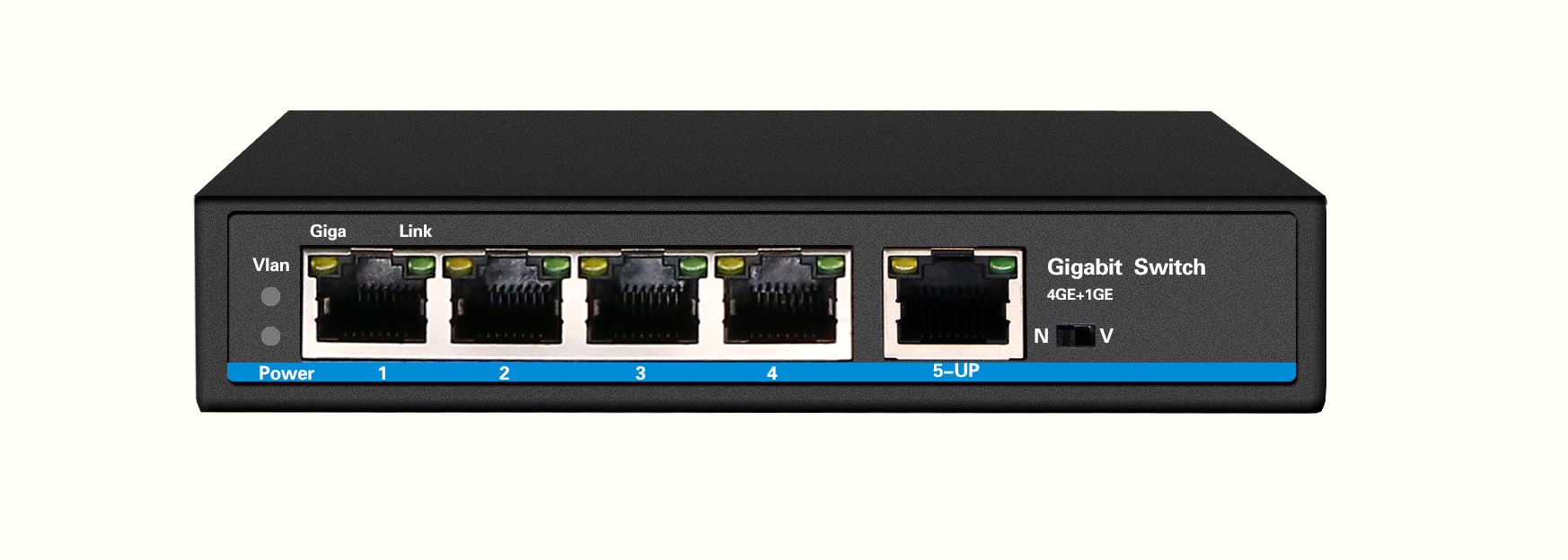

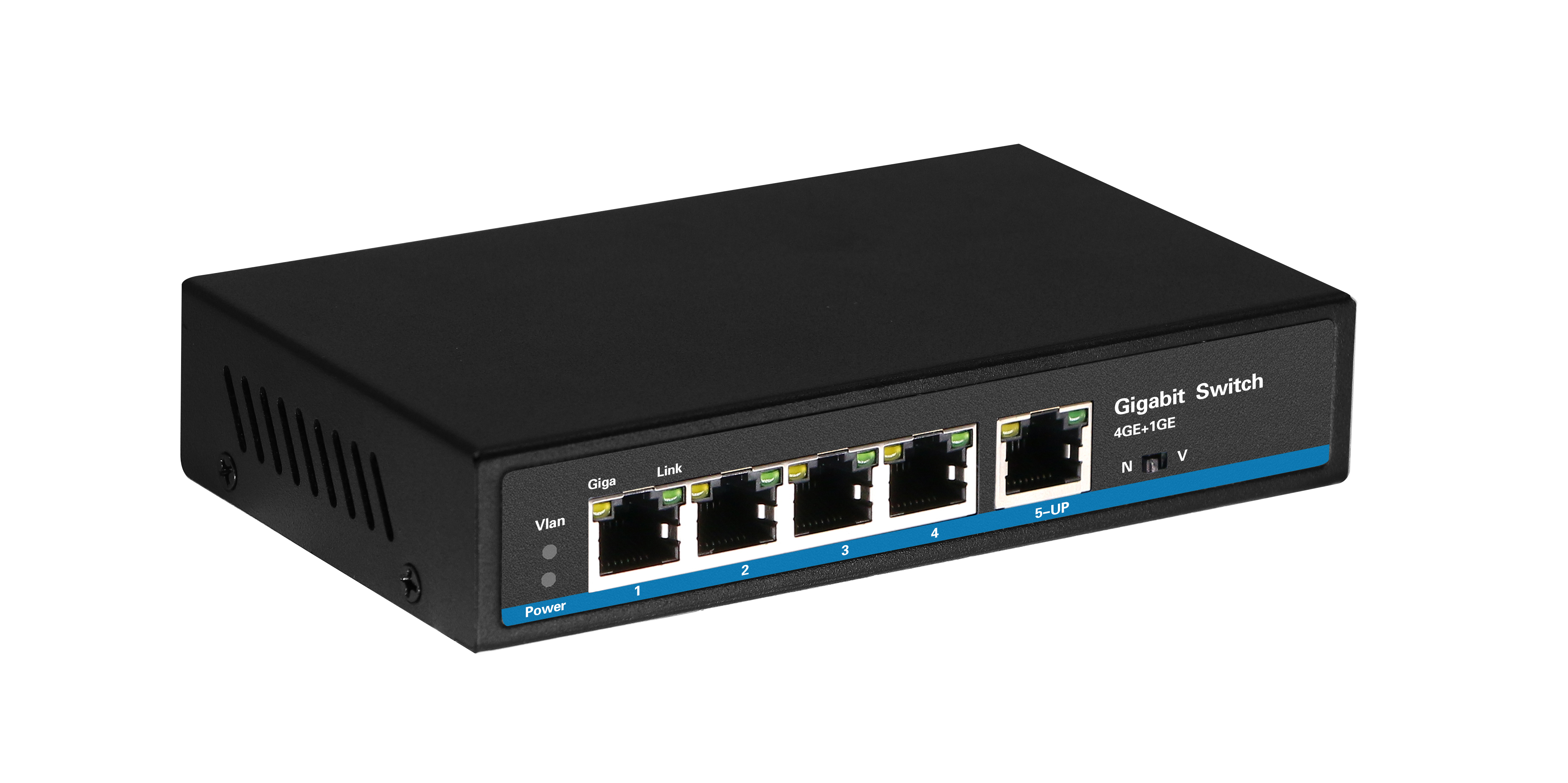

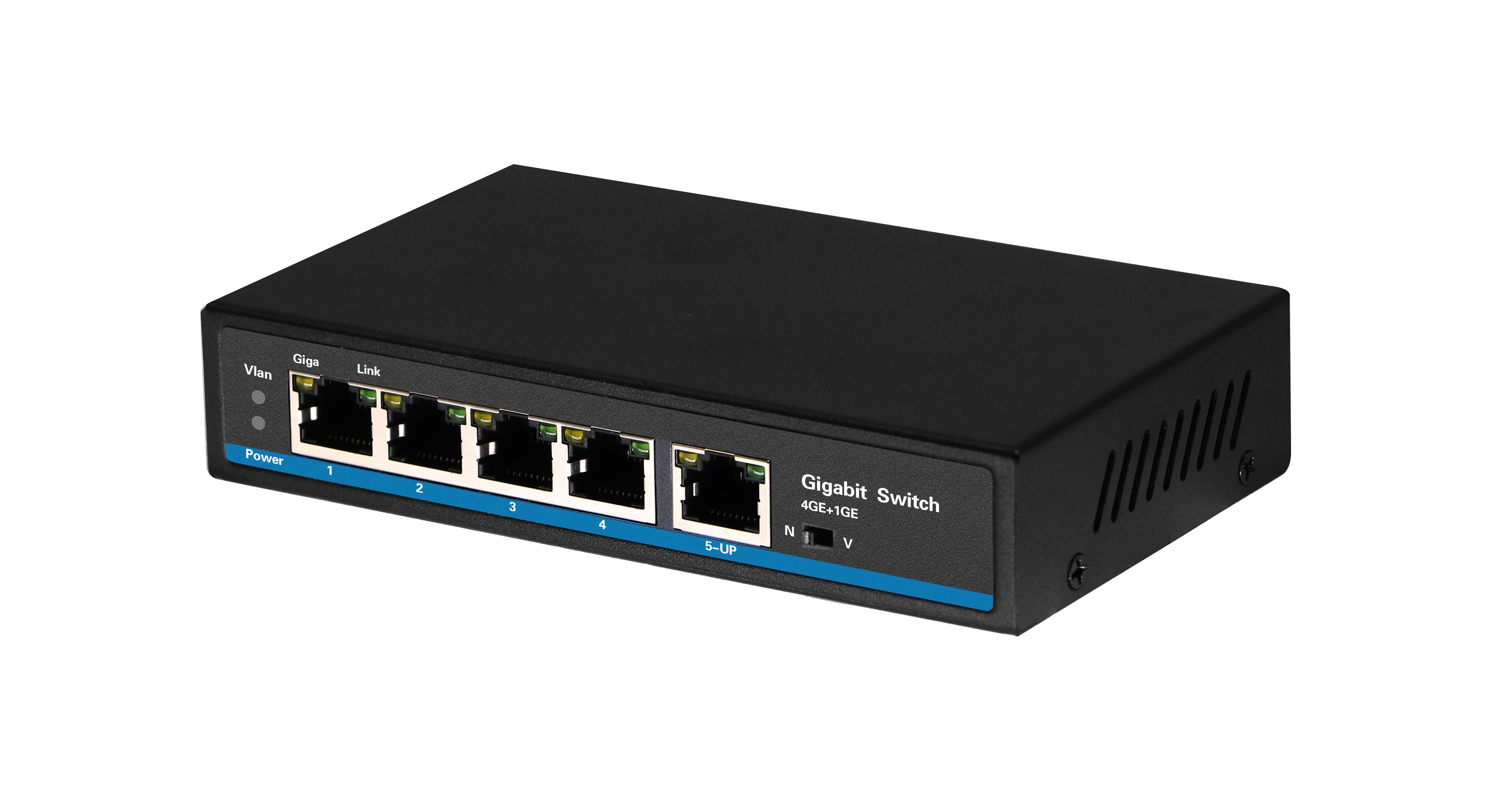

4 Ports Gigabit PoE Switch Extender with PSE/PD Port 150Meters for CCTV/TELECom

Model

M-104GAF-30W

Product

5 Port Gigabit PoE Network Extender

PoE  Input port

Supports 1/2(+)，3/6(-)；4/5(+)，7/8(-)

MAX Input Power 30W

PoE  Output port

Supports IEEE802.3af/at

MAX Output Power 30W

Power

Default:No Power

Watt

Standby Power Consumption：≤5W；

Full-load Power Consumption：≤30W；

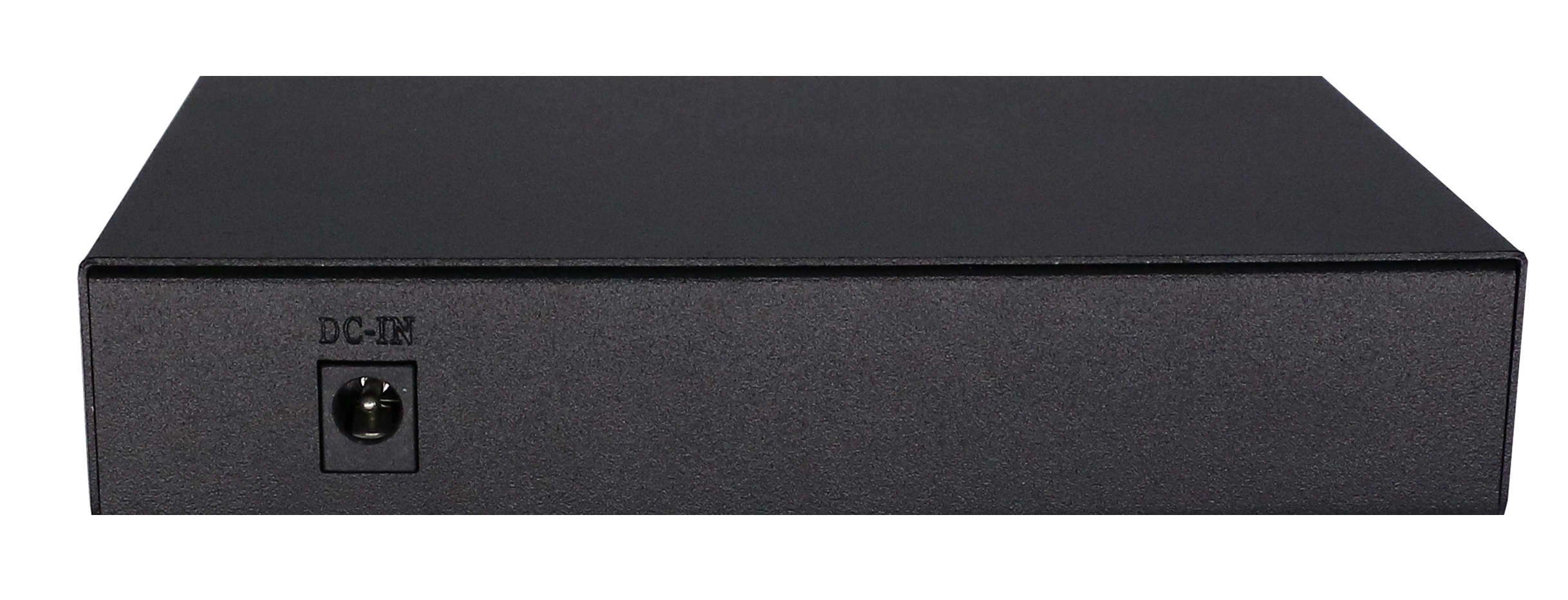

DC In

As Network Extender： DC9-57V MAX 0.5A

As PoE Network Extender：DC37-57V MAX 0.5A

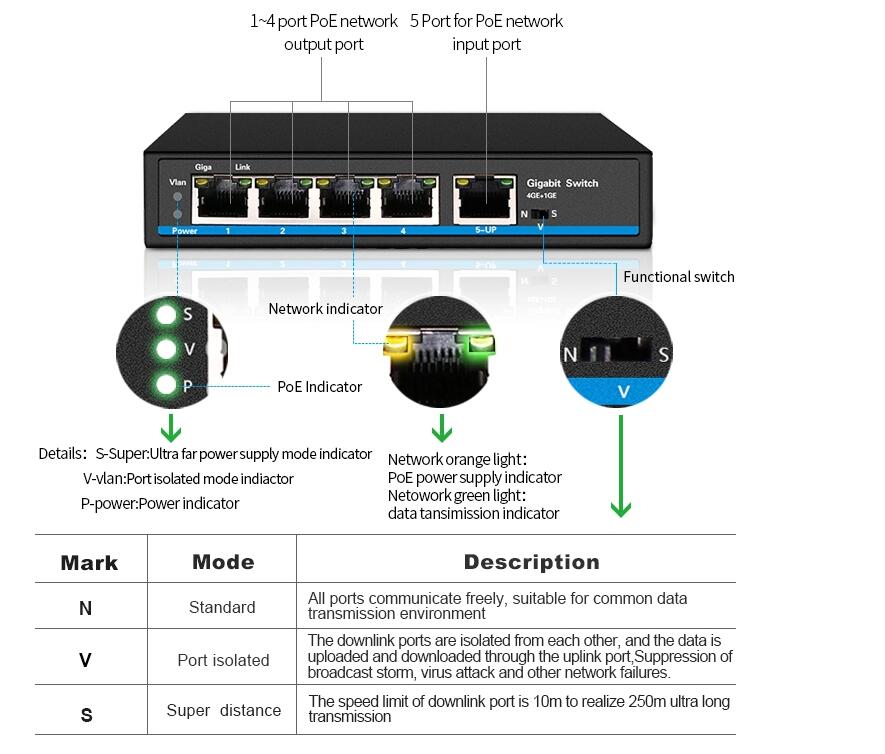

Function

N:(Standard normal)

V:(Port isolation)

LED Indicator

Power:Power LED(Over-power LED)

Vlan:(Port isolation)

Port::(Green=Link LED+Orange=PoE LED)

Network Protocol

IEEE 802.3

IEEE 802.3i  10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab1000BASE-T

IEEE 802.3x

IEEE 802.3af/at

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

12Gbps

Packet Forwarding

7.2Mpps

MAC Address

2K

Buffer

2.5M

Transmission Distance

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

1000BASE-TX ： Cat6 or later UTP(150 meter)

Operating Temperature/Humidity

-10～+55°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+75°C；5%～95% RH Non coagulation

Product size/Packing size（L*W*H）

140mm*80mm*28mm

215mm*175mm*45mm

N.W/G.W（kg）

0.3kg/0.4kg

Installation

Desktop

Lightning protection level

3KV 8/20us；

IP30

Certificate

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Warranty

Whole device for 1 year(Accessories not included)
