PRODUCT
1.1 Product summary

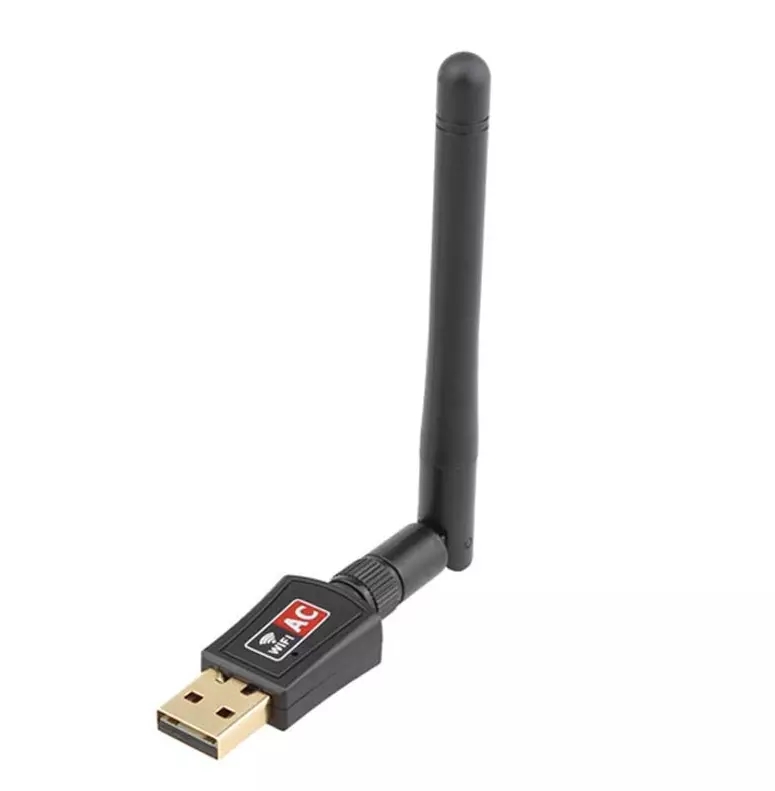

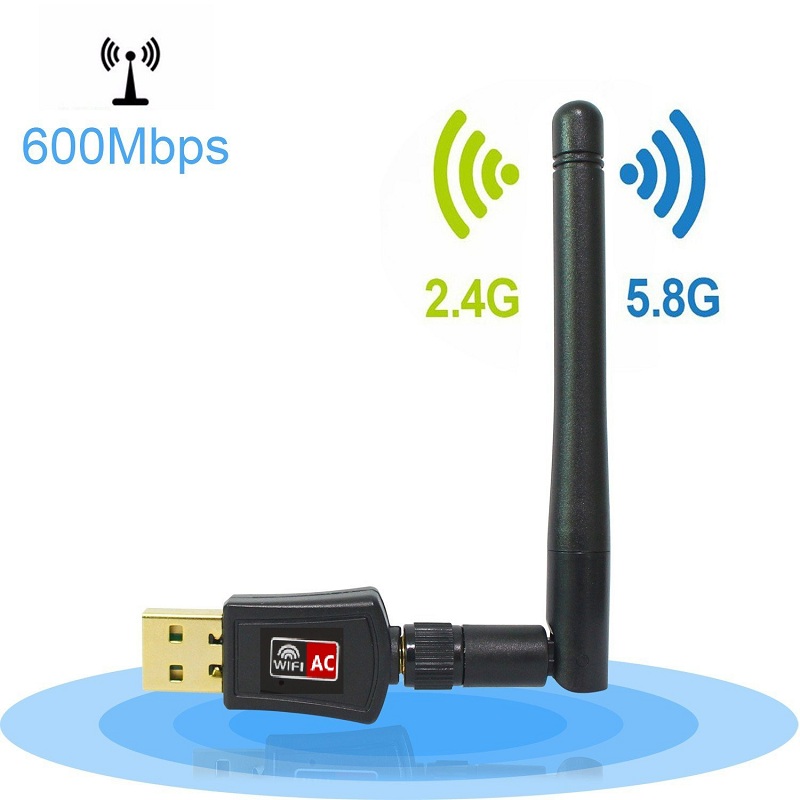

The M-600G is a new 11ac 2.4GHz and 5GHz dual-band wireless USB adapter that can simultaneously search for 2.4GHz and 5GHz network signals and reduce data transmission interference. In the wireless transmission technology has a great advantage, the fastest wireless speed can be 2.4g/150mbps, 5g/433mbps. It is 3x faster than 11n.
At the same time, the WiFi adapter integrates a wireless configuration program for easy installation and use. You can easily connect wireless clients. It also has soft AP functionality that helps you create a wireless LAN network.
1.2 Main features of Ac 600Mbps Wifi
* Support 802.11ac WI-FI standard
* Compatible backward to 802.11 b/g/n standard
* (2.4GHZ/150Mbps, 5GHZ/433Mbps)
*High speed transfer speed, Dual band optional (2.4Ghz/150mbps, 5Ghz/433Mbps)
* Support WPA/WPA2/802.1X/WMM data encryption
*Support Windows XP/Vista/7/8/10, Linx2.6X;Mac OS X
* High anti-interference ability
*Support latest wireless standard
2.Product information
|
Typical Transmit Power |
802.11b (CCK) 11Mbps: 18+/-1dBm |
|
|
802.11g (OFDM) 54Mbps: 15+/-1dBm |
||
|
802.11n (OFDM) 54Mbps: 15+/-1dBm |
||
|
802.11ac(AC80)MCS9:12+/-2dBm |
||
|
EVM |
11b 11Mbps: <-15db 11g 54Mbps: <-27db 11ac MCS9:<-30db |
|
|
Receive Sensitivity |
802.11b: -76+/-1dBm; 802.11g: -65+/-1dBm |
|
|
802.11n (HT20), -70+/-1dBm;802.11n (HT40), -65+/-1dBm |
||
|
AC80-MCS9:-55+/-1dBm |
||
|
Wireless transmission rate |
11b: Max 11Mbps,11g:Max 54Mbps ,11n:Max 150Mbps,AC:Max 433Mbps |
|
|
Operation System |
Windows XP/Vista/7/8/10, Linx2.6X;Mac OS X |
|
