PRODUCT
Key Feature
1. 2.4Ghz &5Ghz Dualband Wireless USB adaptor
2. Chipeset: Realtek8811CU
3. Host interface : USB 2.0/1.1
4. Peak throughput : 150Mbps/450Mbps
5. Antenna : Build-in 2dBi antenna
6. Standard: 802.11ac/a/b/g/n
7. Operation system: Windows ME/98SE/2000/XP/Vista, MAC, Windows 7/ 8/ 10
8. WPS button available
Description
This Dual Band Adapter delivers powerful wireless technology to your desktop or notebook computer. Simply plug the adapter into an available USB port and connect to a wireless network to access a secure, high-speed internet connection – 2.4GHz (150Mbps) or 5GHz (up to 450Mbps). And with integrated Dual Band technology, you’ll have reduced Wi-Fi interference to maximize throughput for faster streaming, gaming, and Skype calls
Product Specifications
|
Specification |
|||
|
Chipset |
Realtek RTL8811CU |
||
|
Interface |
USB 2.0 |
||
|
Modulation |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, |
||
|
256-QAM |
|||
|
Frequency |
2.412~2.484 GHz 4915 ~ 5850 MHz |
||
|
Standard |
IEEE 802.11ac, IEEE 802.11a/b/g/n |
||
|
Wireless speed |
11ac: Up to 433Mbps(dynamic) |
||
|
11a: Up to 54Mbps(dynamic) |
|||
|
11b: Up to 11Mbps(dynamic) |
|||
|
11g: Up to 54Mbps(dynamic) |
|||
|
11n: Up to 150Mbps(dynamic) |
|||
|
Antenna |
Integrated Antennas |
||
|
Transmit Power(EIRP) |
100mW |
||
|
Safely |
64/128-bit WEP, AES,TKIP,WPA,WPA2,802.1x,WPA-PSK,WPA2-PSK,MAC , WDS |
||
|
Distance |
Outdoors 300m, Indoor 100m(According to the actual environment change) |
||
|
Reception Sensitivity |
11a 6Mbps: -88dBm |
11b 11Mbps: -90dBm |
|
|
11a 54Mbps: -71dBm |
11g 54Mbps: -73dBm |
||
|
11ac HT20: -65dBm |
11n HT20: -71dBm |
||
|
11ac HT40: -60dBm |
11n HT40: -68dBm |
||
|
11ac HT80: -56dBm |
|
||

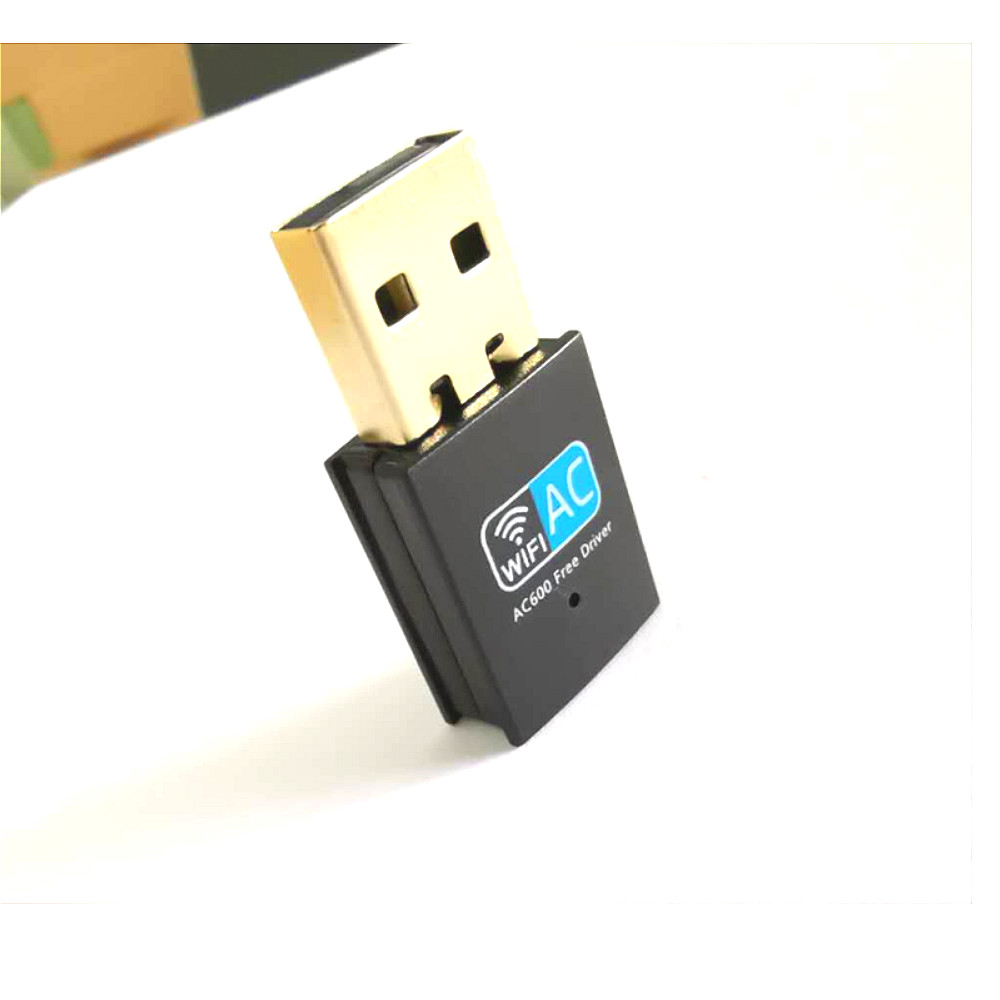

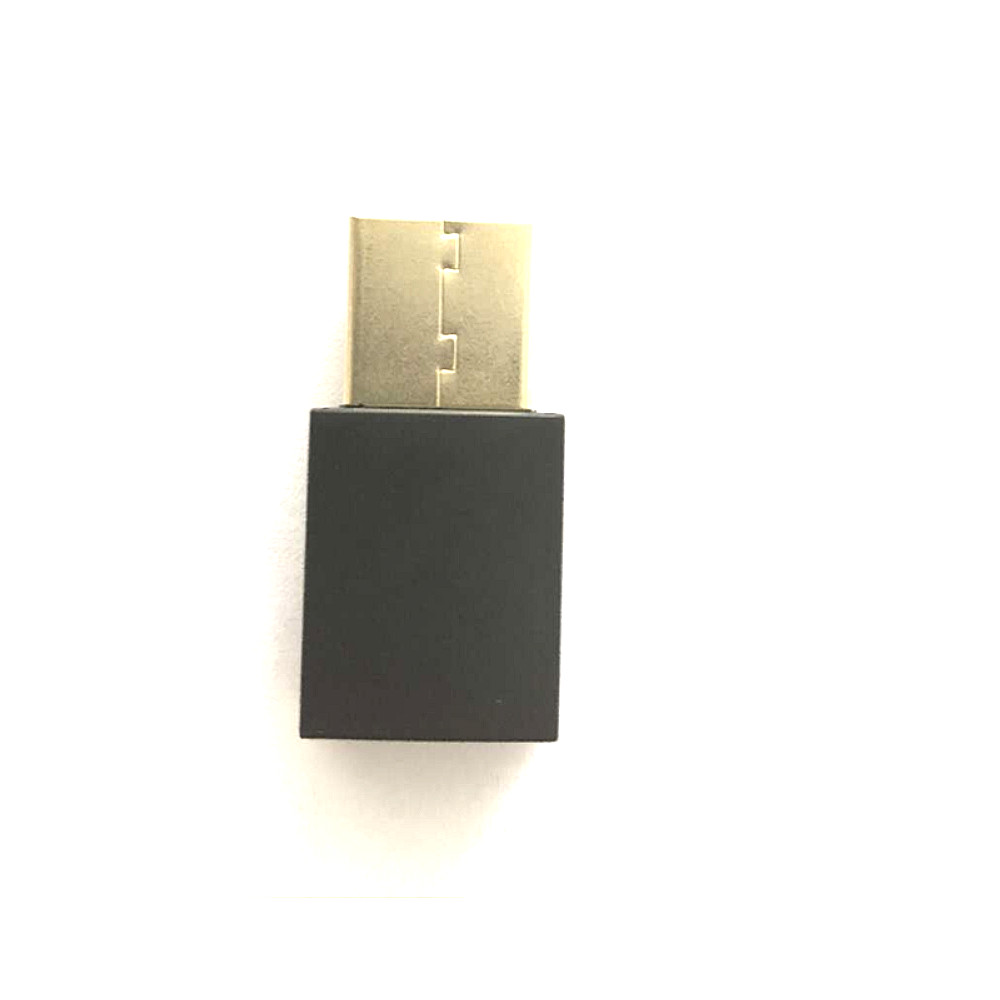

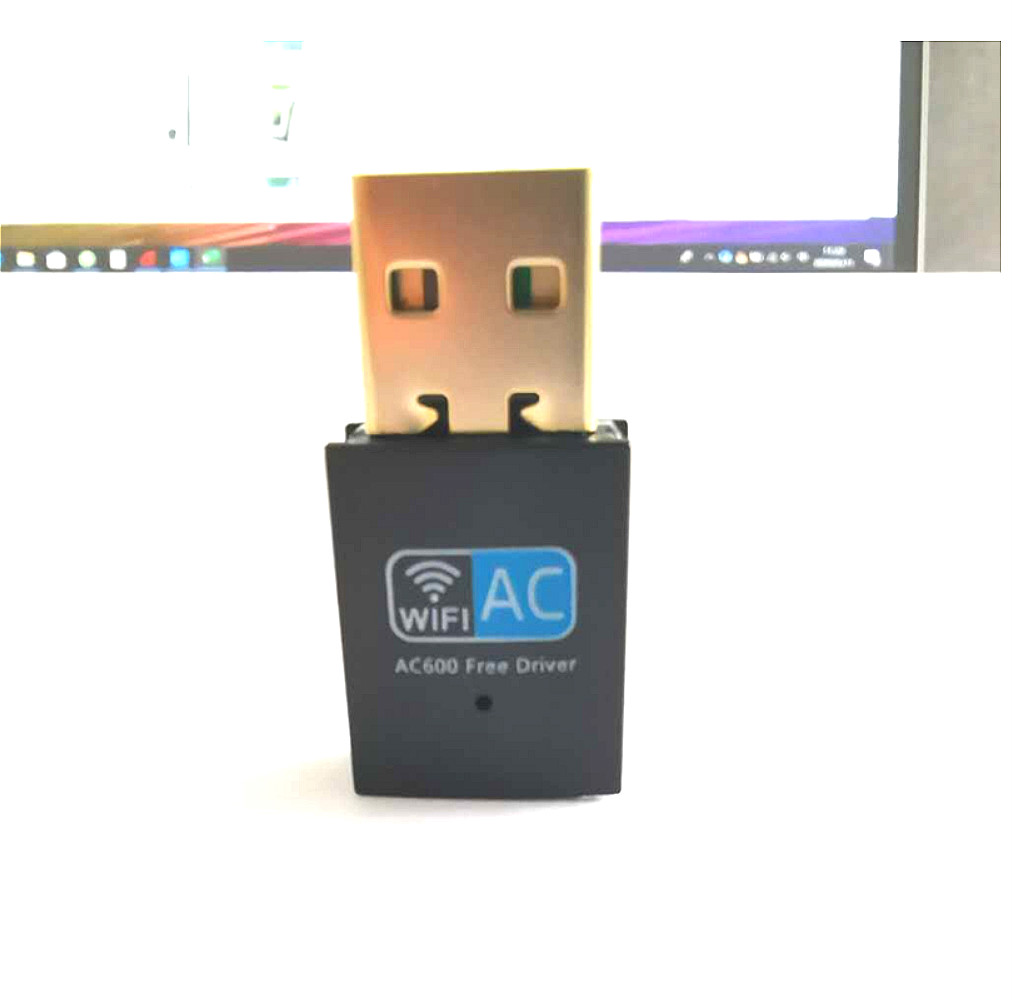

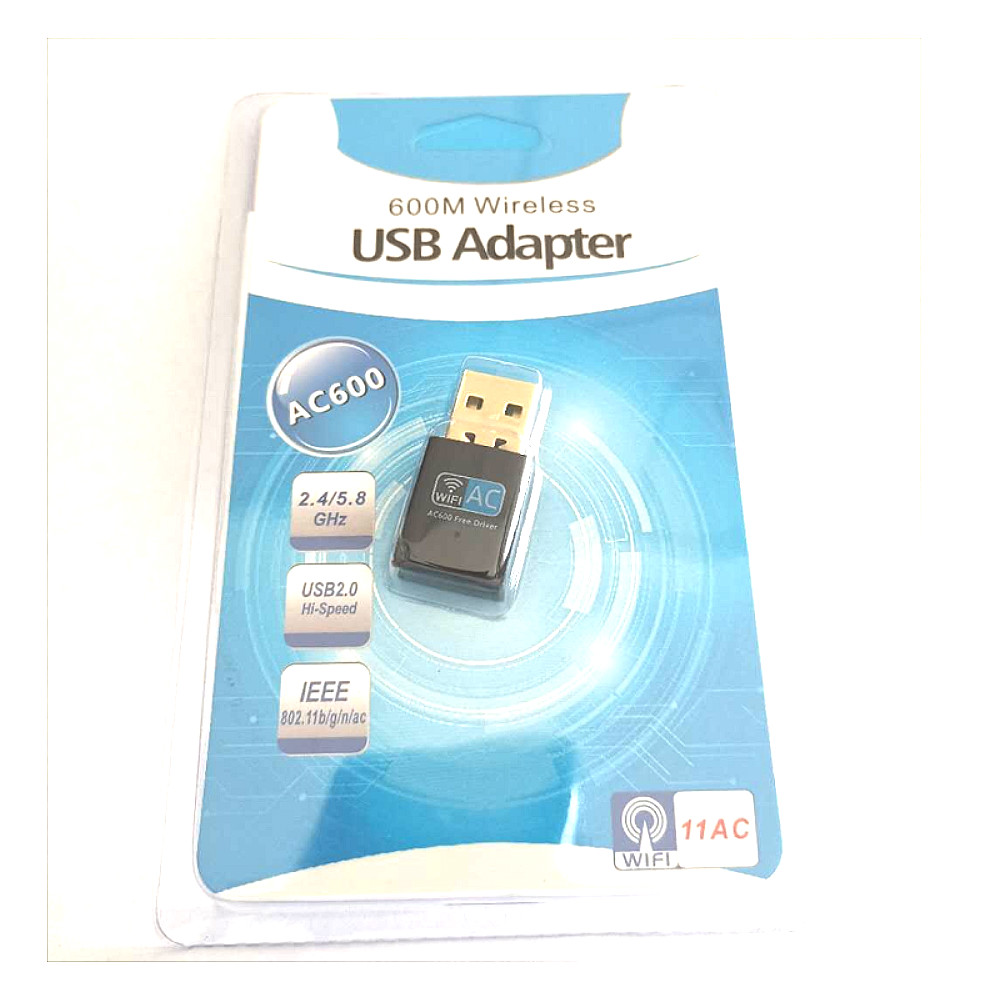

Product pictures:
