Upgraded 600M 5Ghz 2.4Ghz 11AC dual band wifi adapter wifi stick wifi dongle for MAG254 MAG 250 MAG275 MAG322 MAG324 MAG420 MAG424 MAG425 IPTV BOX

Upgraded 600M 5Ghz 2.4Ghz 11AC dual band wifi adapter wifi stick wifi dongle for MAG254 MAG 250 MAG275 MAG322 MAG324 MAG420 MAG424 MAG425 IPTV BOX

Product ID : M-600S

Product Tags :

Product Attributes :

- RT7610 Chipset
-Supports Dual Band 802.11 AC most modern Wi-Fi and is backward compatible with 802.11 a/b/g/n
- Miniature size is convenient to move without having to unplug
- Supports 802.11 AC Standard- The next generation of Wi-Fi
- Support 2.4GHz & 5GHz WLAN networks
- Backward compatible with 8021.11 a/b/g/n
- Ultra-fast AC600 (433+150Mbps) wireless speed with 802.11AC

- Maximum speed up to 5GHz 433 Mbps or 2.4 GHz 150 Mbps
- Dual Band connections for lag-free HD video streaming and Gaming
- SuperSpeed USB 2.0 port
- Easy wireless security encryption at a push of the WPS button
- Supports Windows 10/8/7/XP 32/64 bit,linux,mac
- 20MHz & 40MHz & 80MHz bandwidth transmission
- Complies with IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards

-naked size:27.7*14.2*6.7CM

Product Description

Upgraded 600M 5Ghz 2.4Ghz 11AC dual band wifi adapter wifi stick wifi dongle for MAG254 MAG 250 MAG275 MAG322 MAG324 MAG420 MAG424 MAG425 IPTV BOX

Introduction

This adapter operates in 2.4GHz and 5GHz ISM frequency band with low power consumption; it applies a highly integrated MAC/BBP and RF single chip MT7610UN with 433Mbps PHY rate supporting. The small form factor and low cost design provide excellent performance for the wireless connectivity, it is ideal for confine space application. With Dual band high speed, it can also support Mag254 Mag250 and Latest Mag322 IPTV BOX, Satellite digital receiver.

Protocols and Standards IEEE802.11/b/g & 802.11n & 802.11ac (1T1R mode)

Working Bands 2.412GHz-2.4835GHz, 5.15 GHz- 5.825 GHz

(usage condition is depended on different country's supervision)

Antenna Built-in antenna

Encryption Pattern WFA, WPA, WPA2, WPS2.0, WAPI

Transmitting Power

(feed point to antenna) 802.11a: 14-16dBm@ 54Mbps (OFDM)

802.11b: 16-20dBm@ 11Mbps

802.11g: 14-16dBm@ 54Mbps

802.11n: 14-16dBm@ 150Mbps

802.11ac: 12.5-13.5dBm@433Mbps(AC80)

Receiving Sensitivity

(feed point from antenna) 802.11a: -66+/-1dBm

802.11b: -80+/-1dBm

802.11g: -73+/-1dBm

802.11n: -70+/-1dBm(HT2); -64+/-1dBm(HT40)

802.11ac: -80+/-1dBm(MCS0); -56+/-1dBm(MCS9), (AC80)

Working Voltage 5.0VDC± 5%

Power Consumption RX & TX condition: 220mA(max)

TX condition: 220mA(max)

RX condition: 180mA(max)

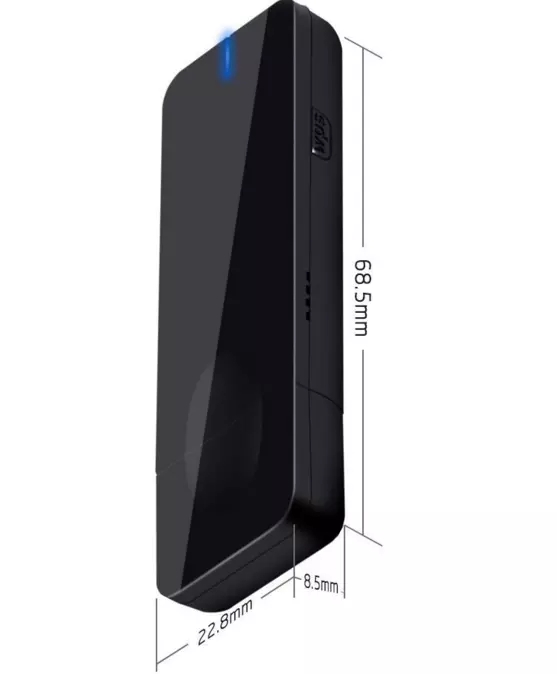

Mechanical Specification

Dimension 67.75*22.8*8.5mm
