1. General description:
*M-1200CB is a highly integrated single-chip 802.11AC Wireless LAN (WLAN) USB 3.0 Multi-Function network interface controller with integrated Bluetooth 2.1/3.0/4.0/4.2 controller. It is plug and play for windows10/8, 2 in 1 bluetooth and wifi function.
*It combines a WLAN MAC, a 4T4R capable WLAN baseband, and RF in single chip.
*It provides a complete solution for a high-performance integrated wireless and Bluetooth device.
*The integration provides better coordination between 802.11a/b/g/n and Bluetooth, and with sophisticated dynamic power control and packet traffic arbitration.
*M-1200CB is able to provide the best coexistence performance Overview.
2. Main features:
Wireless standards IEEE 802.11AC/B/G/N
Host interface USB3.0
Frequency band 2.4 ~ 2.4835GHz 5.1Ghz~5.825Ghz
Data rate 11n: Up to 1200M
11g: 6/9/12/18/24/36/48/54Mbps(auto adaptation)
11b: 1/2/5.5/11M(auto adaptation)
11N:upto 300Mbps
11ac: upto 867Mbps
Working channel: 11/13/14 BT CH.0~78
Data modulation: OFDM, OFDM with PSK,BPSK,16-QAM,64-QAM,CCK,DQPSK,DBPSK
RF power 20dBm (Maximum)
Transmission rate:600Mbps (Maximum) LED: Status
Operating system: Windows XP/VISTA/WIN7/WIN8/10/MAC/LINUX
3. Datasheet and Specification:
| Description | RTL8822BU chipset 2 in 1 wifi bluetooth usb adapter |
| Product name | 2 in 1 bluetooth usb wifi adapter |
| Item/Part number | M-1200CB |
|

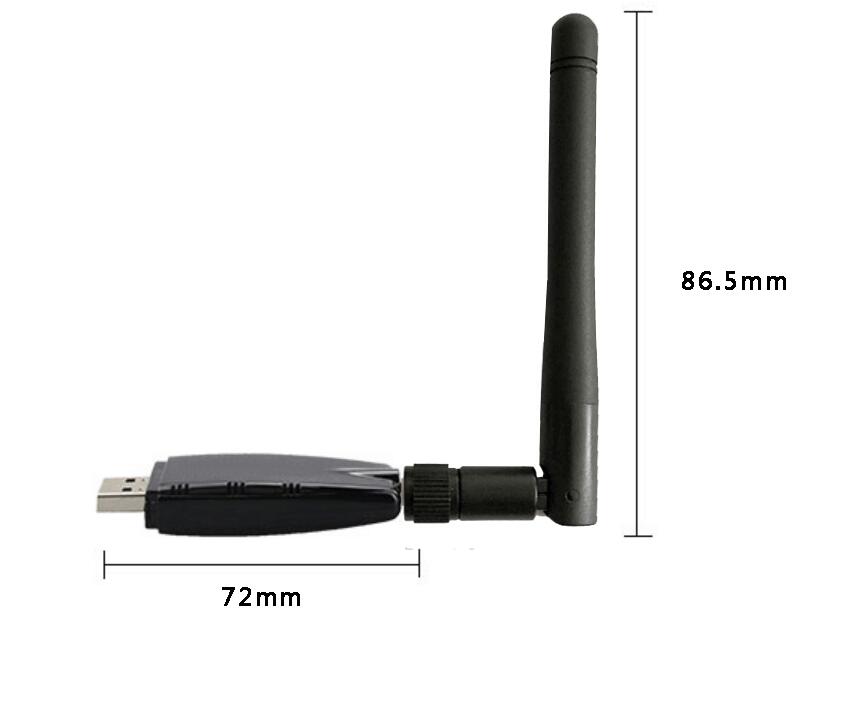

Dimensionis ( L x W mm) |
160x20mm |
| Main IC | Realtek RTL8822BU |
| Operation Voltage (V) | 3.3V |
| Host Interface | USB 3.0 |
| Operating temperature | -10°C to +70°C |
| Standard | WiFi: EEE 802.11ac/b/g/n B T: V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/4.2 |
| Frequency Range | 2.4GHz~2.4835GHz : 5.1Ghz~5.825Ghz |
| Modulation Type |
802.11ac: OFDM/CCK/QPSK/BPSK 802.11b: CCK, DQPSK, DBPSK |
| Working Mode | Infrastructure, Ad-Hoc,Wi-Fi,BT,Soft AP,Pico Net Scatter Net,Wi-Fi direct |
| Sensitivity @PER |
Wi Fi: 802.11ac:-76dBm@10%PER |
| RF Power | 18dBm@11b, 14dBm@11g , 13dBm@11n BT: MAX +10dBm |
| Antenna type | Externa 2dBi antenna |
| The transmit distance | WiFi: Indoor 100M, Outdoor 300M, according the local environment BT: 10m MAX. |
| Power supply | 5V +/-0.3V |
| Power Consumption | standby mode 86mA@5V , TX mode 205mA@5V |
| Working Temperature | -10°C to +70°C |
| Storage temperature | -40°C to +135°C |

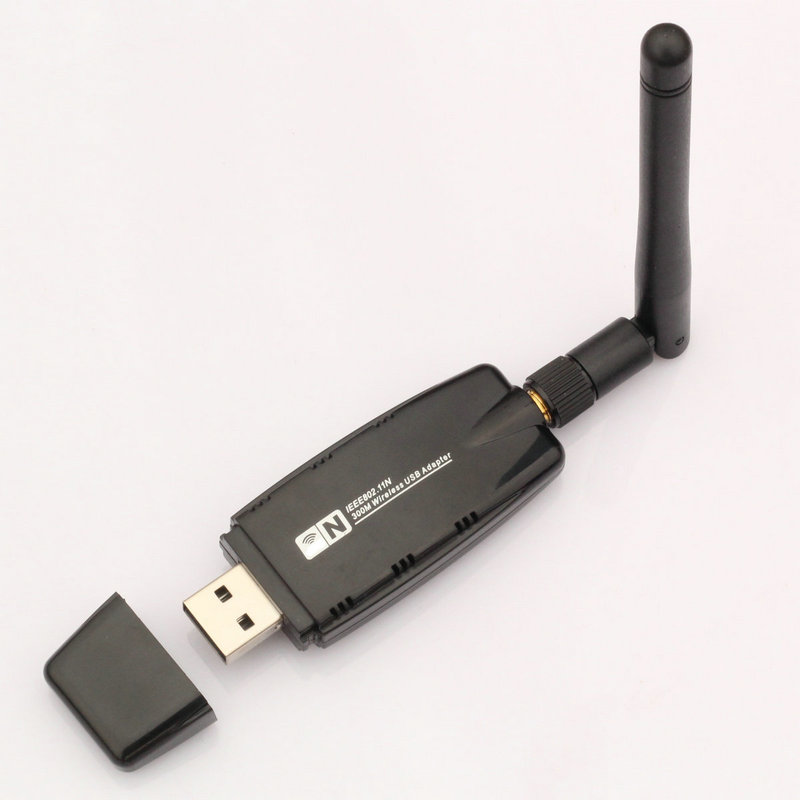

4.Product Picutures:
