1. General description:
*M-150KB is a highly integrated single-chip 802.11n Wireless LAN (WLAN) USB 2.0 Multi-Function network interface controller with integrated Bluetooth 2.1/3.0/4.0 controller. It is plug and play for windows10/8, 2 in 1 bluetooth and wifi function.
*It combines a WLAN MAC, a 1T1R capable WLAN baseband, and RF in single chip.
*It provides a complete solution for a high-performance integrated wireless and Bluetooth device.
*The integration provides better coordination between 802.11 and Bluetooth, and with sophisticated dynamic power control and packet traffic arbitration.
*M-150KB is able to provide the best coexistence performance Overview.
2. Main features:
Wireless standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Host interface USB2.0
Frequency band 2.4 ~ 2.4835GHz
Data rate 11n: Up to 150M
11g: 6/9/12/18/24/36/48/54Mbps(auto adaptation)
11b: 1/2/5.5/11M(auto adaptation)
Working channel: 14
Data modulation: OFDM, OFDM with PSK,BPSK,16-QAM,64-QAM,CCK,DQPSK,DBPSK
RF power 20dBm (Maximum)
Transmission rate:150Mbps (Maximum) LED: Status
Operating system: Windows XP/VISTA/WIN7/WIN8/MAC/LINUX
Product size: 37 * 19 * 7mm
Color: Black
Net weight: 5g
3. Datasheet and Specification:
| Description | RTL8723bu chip 2 in 1 wifi bluetooth usb adapter |
| Product name | 2 in 1 bluetooth usb wifi adapter |
| Item/Part number | M-150KB |
|
Dimensionis ( L x W mm) |
19x15mm |
| Main IC | Realtek RTL8723BU |
| Operation Voltage (V) | 3.3V |
| Host Interface | USB 2.0 |
| Operating temperature | 0°C to +50°C |
| Standard | WiFi: EEE 802.11b, IEEE 802.11g, IEEE 802.11n B T: V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 |
| Frequency Range | 2.4GHz~2.4835GHz |
| Modulation Type | 802.11b: CCK, DQPSK, DBPSK 802.11g: 64 QAM, 16 QAM, QPSK, BPSK 802.11n: 64 QAM, 16 QAM, QPSK, BPSK B T: 8DPSK, π/4 DQPSK, GFSK |
| Working Mode | Infrastructure, Ad-Hoc |
| Sensitivity @PER |
Wi Fi: 1M: -92dBm@8%PER |
| RF Power | 16dBm@11b, 14dBm@11g , 13dBm@11n BT: MAX +10dBm |
| Antenna type | External 2dBi antenna |
| The transmit distance | WiFi: Indoor 100M, Outdoor 300M, according the local environment BT: 10m MAX. |
| Power supply | 5V +/-0.3V |
| Power Consumption | standby mode 86mA@5V , TX mode 205mA@5V |
| Working Temperature | 0°C to +50°C |
| Storage temperature | -40°C to +85°C |

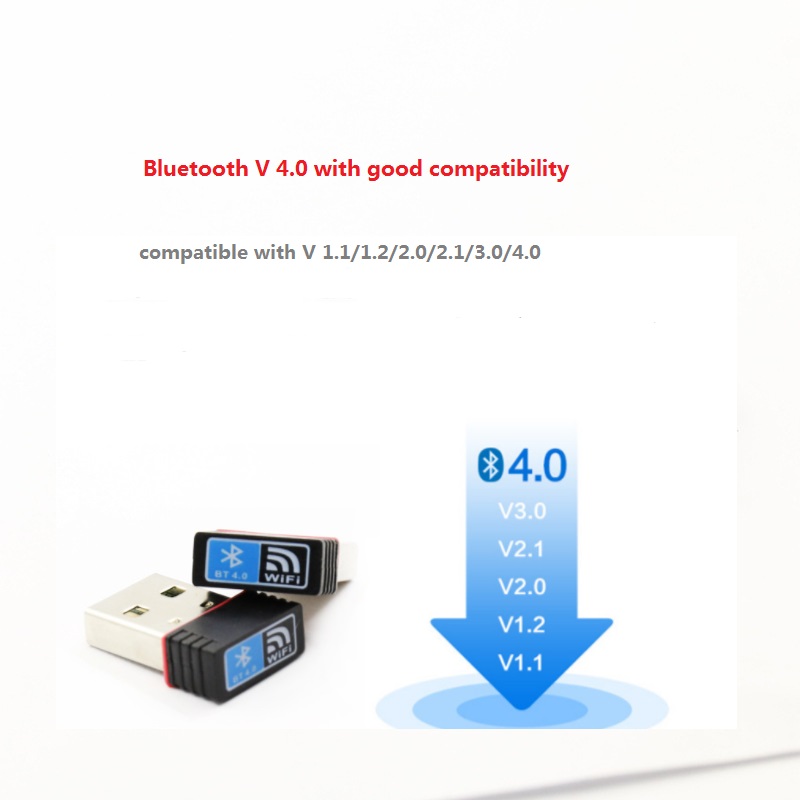

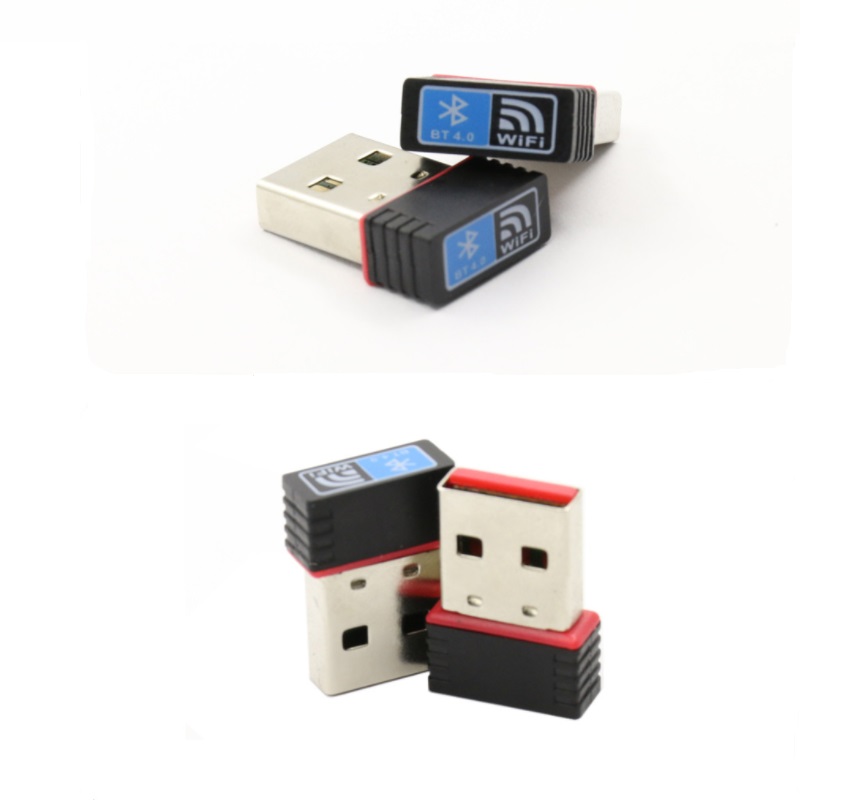

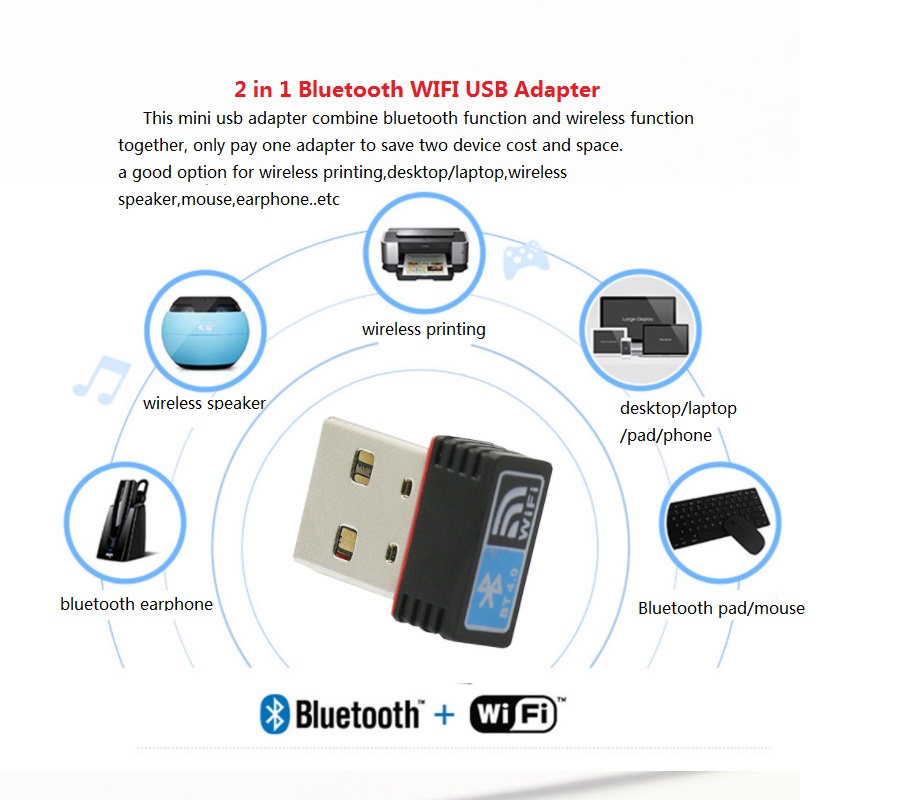

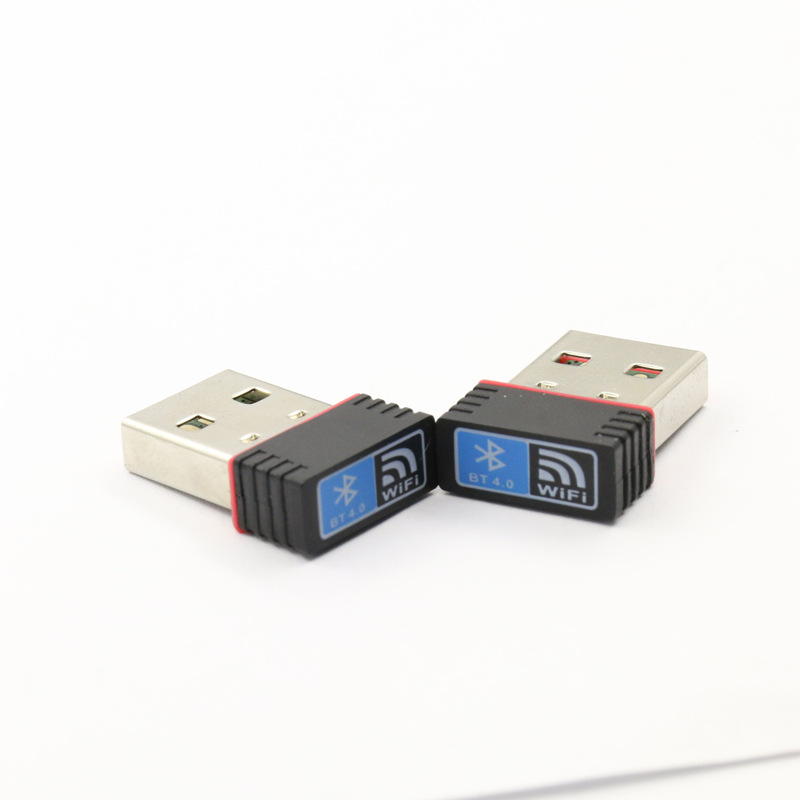

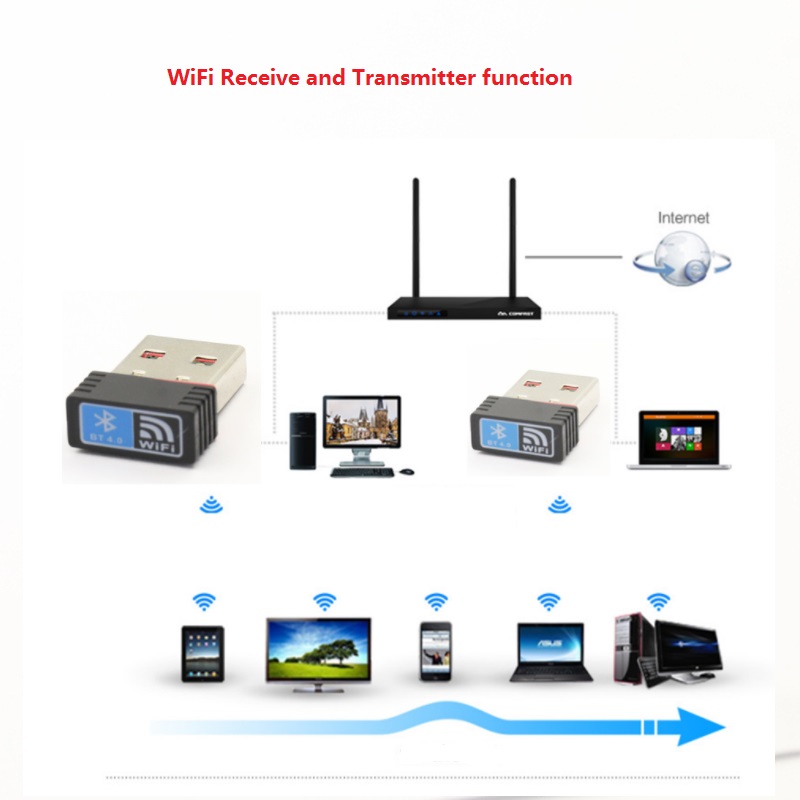

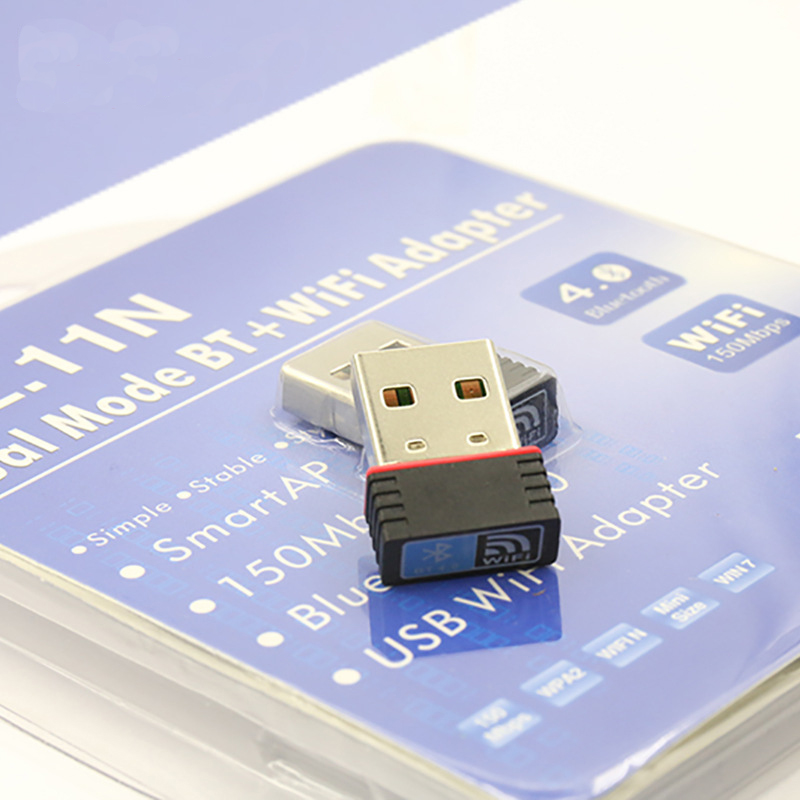

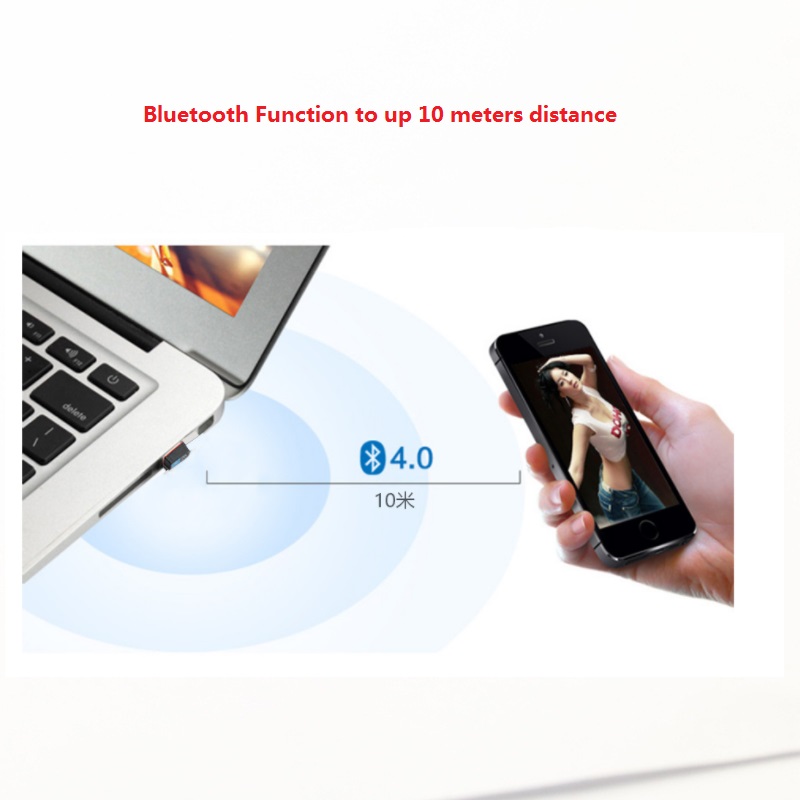

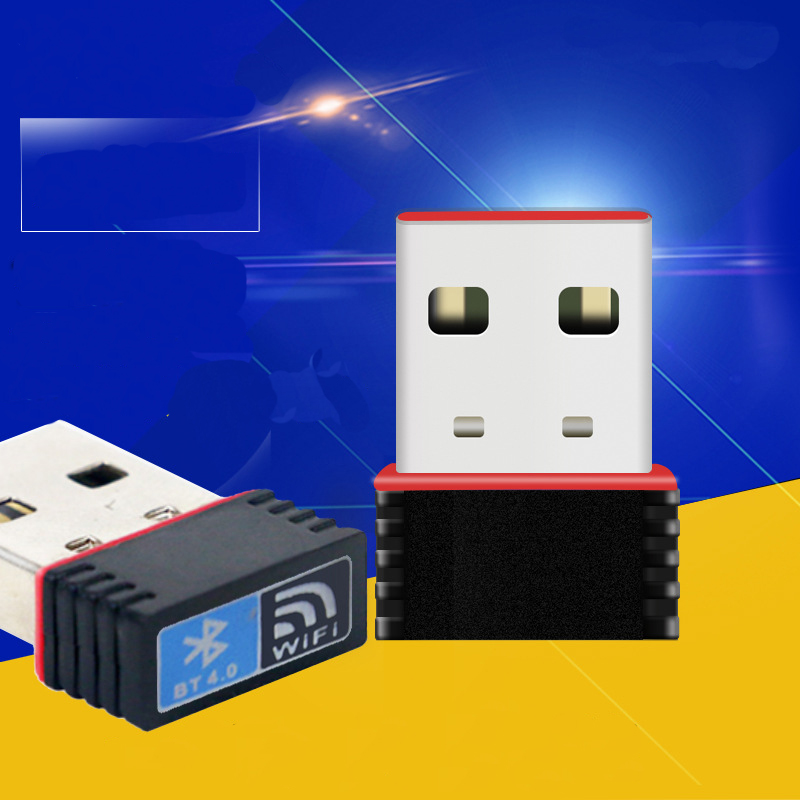

4.Product Picutures:
