1. General description:

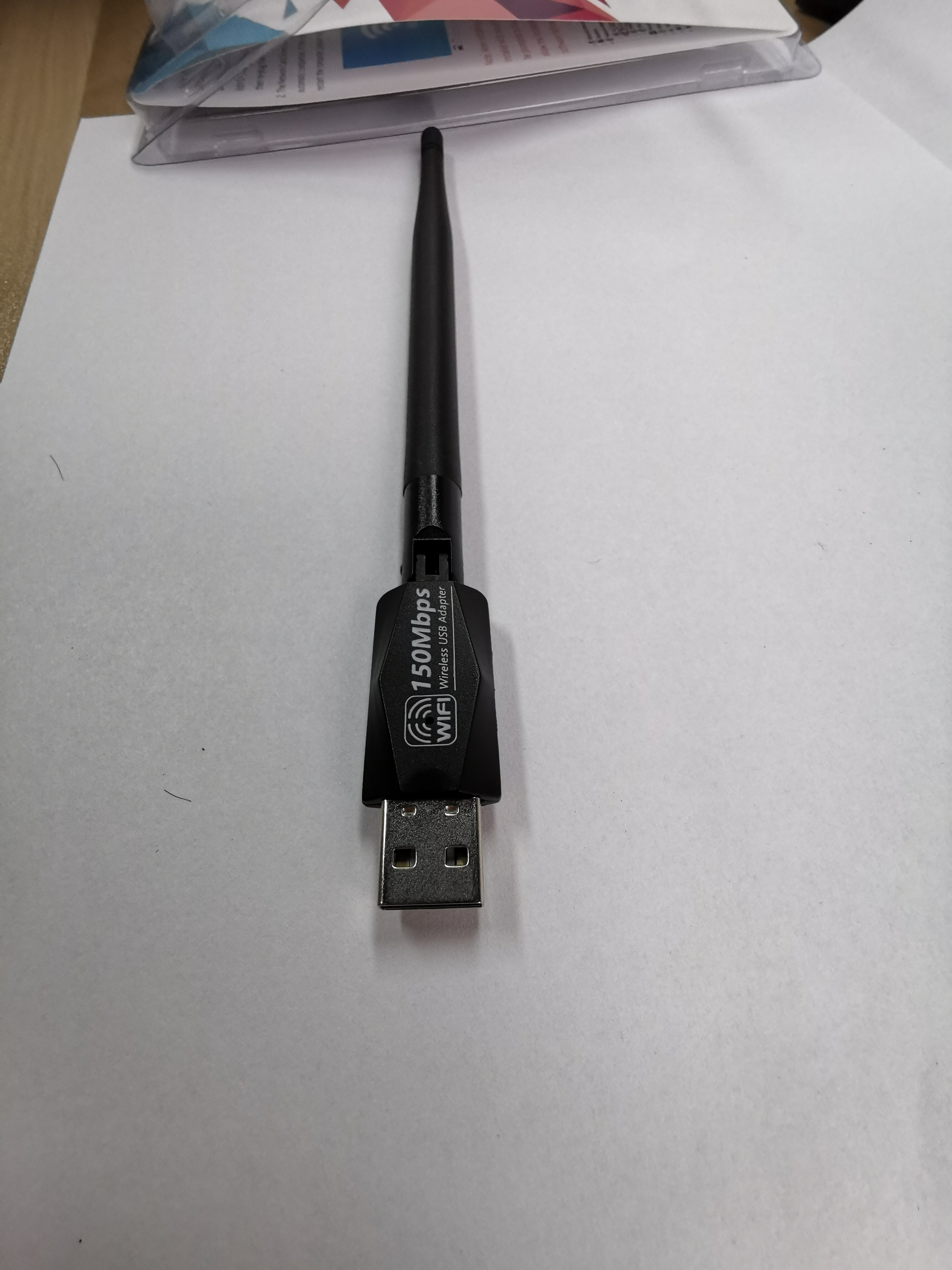

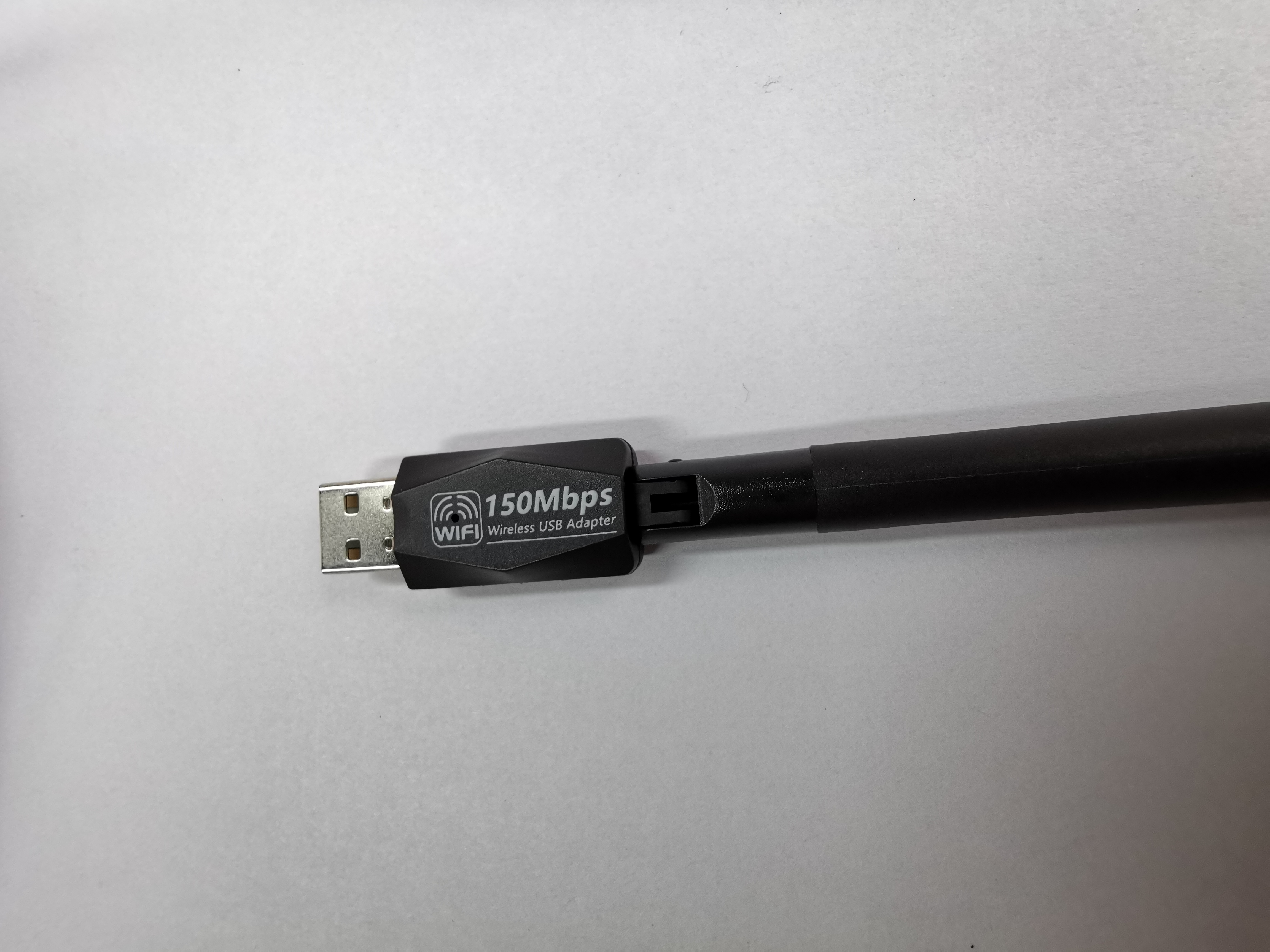

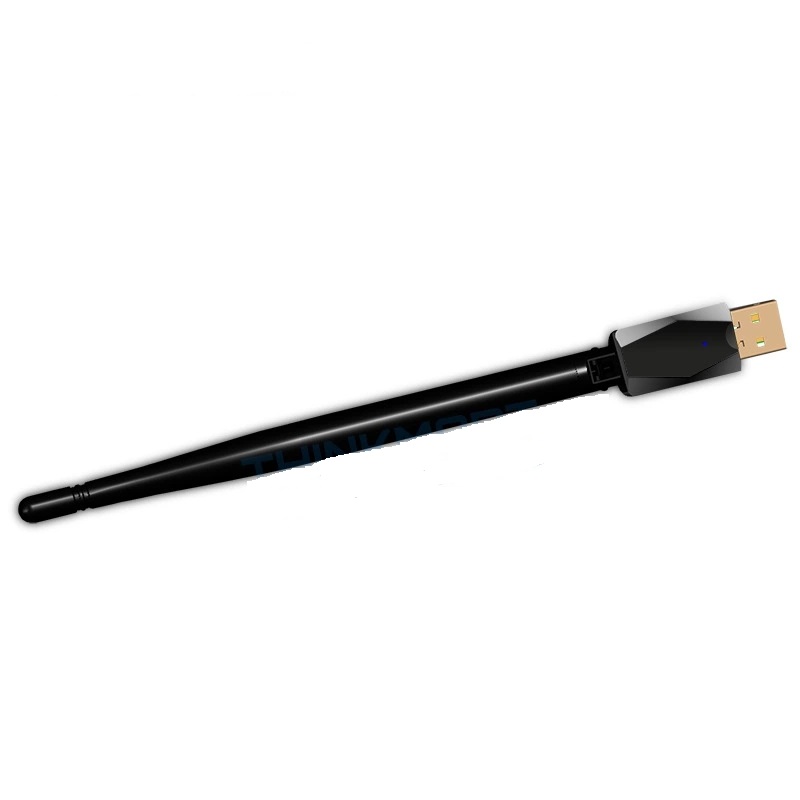

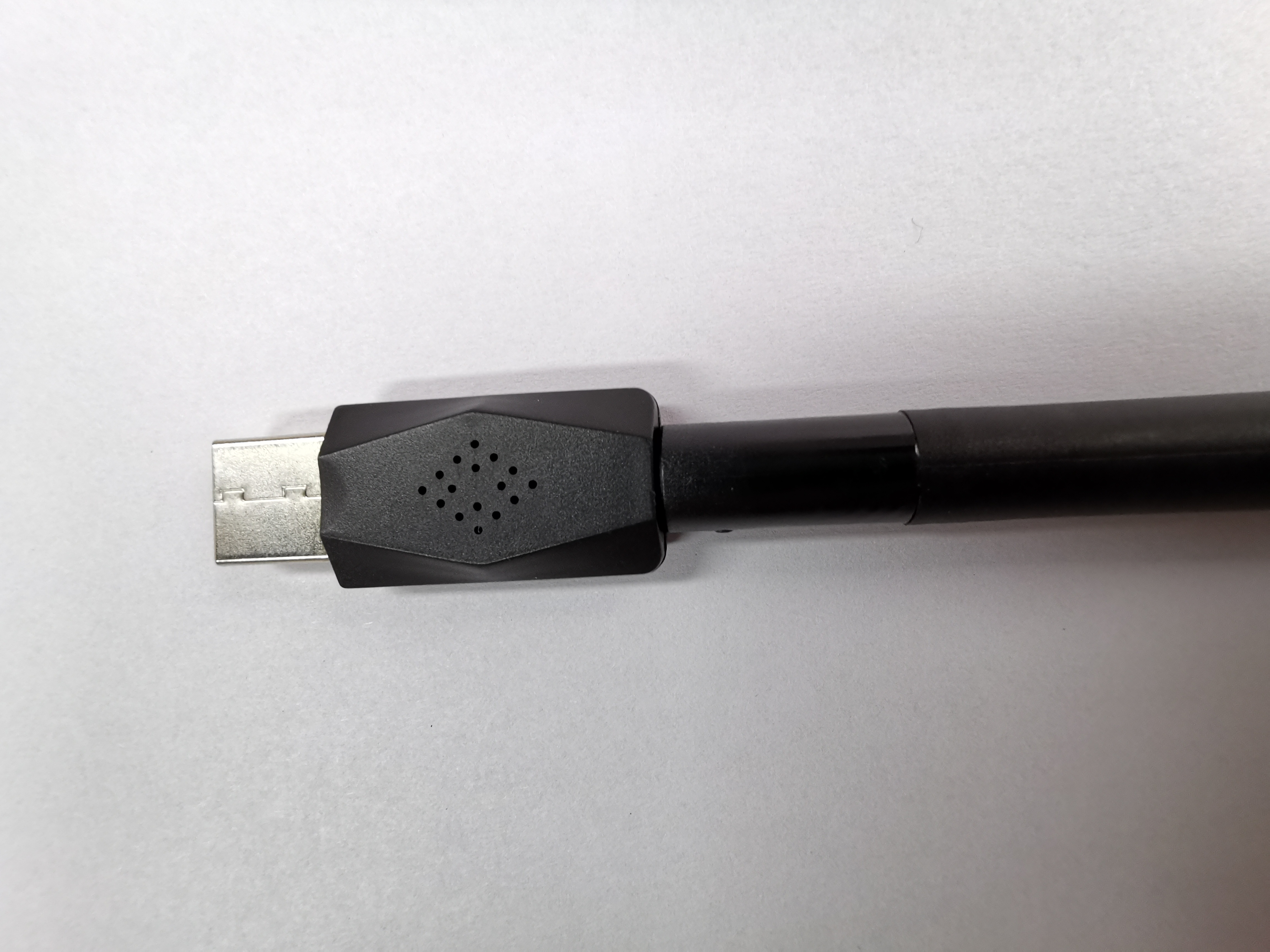

150M wifi adapter with external antenna allows you to connect your laptop or desktop to any Wireless-N networks in your home or office. Its simple and easy setup means you'll be surfing the internet, downloading movies, and e-mail in no time. With 5Dbi external antenna, it can receive wifi signal from long distance. Thus strengthen the wifi signal very easily.
2. Main features:
* MT7601 Chipset
* Mini portable USB 2.0 design.
* External 5Dbi antenna optional to meet your various demand.
* Wireless N speed up to 150Mbps, ideal for internet surfing and online gaming.
* Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b standards.
* Provides two work modes: Infrastructure and Ad-Hoc.
* MIMO technology makes wireless transmission rates up to 150Mbps wifi antenna.
* CCA technology enhances your signal stablility by automatically avoiding channel conflicts.
* Supports 64/128-bit WEP, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions.
* Supports WIN2K, XP, VISTA, WIN7, MAC, LINUX operating system.
* Perfectly match with Raspberry PI, Banan PI, Skybox, STB,IPTV, Navigation system, 3D printer
* Supports wireless roaming technology for high-efficient wireless connections.
* Seamlessly compatible with 802.11b/g/n devices.
3. Datasheet and Specification:
|
Hardware |
||
|
Main Chipset |
MT7601 |
|
|
Host interface |
USB2.0, type A connector |
|
|
LED |
Link/ Activity |
|
|
RF |
||
|
Antennas |
90 degree rotatable 2dBi Omni antenna |
|
|
Operation Frequency |
2412~2483.5 MHz |
|
|
Typical Transmit Power (onboard value) |
802.11b (CCK) 11Mbps: 18+/-1dBm |
|
|
802.11g (OFDM) 54Mbps: 15.5+/-1dBm |
||
|
802.11n (HT20atMCS7), 14+/-1dBm |
||
|
802.11n (HT40atMCS7), 14+/-1dBm |
||
|
Receive Sensitivity |
802.11b: -88+/-1dBm at 11Mbps |
|
|
802.11g: -76+/-1dBm |
||
|
802.11n (HT20), -72+/-1dBm |
||
|
802.11n (HT40), -69+/-1dBm |
||
|
Software |
||
|
Operation System |
Windows XP,Vista,Win7/8/10 only |
|
|
Security |
WEP, WPA,WPA2,WAPI,QoS (802.11e andWMM), |
|
|
Operation Conditions |
||
|
Voltage Range |
DC 5.0 V ± 5% |
|
|
Current Range |
140+/-5mA at 802.11g, 54Mbps; 185+/-5mA at802.11b , 11Mbps |
|
|
Operating Temperature |
-10°C - 60°C |
|
|
Storage Temperature |
-20°C - 80°C |
|
|
Operating Humidity |
RH 95% (Non-Condensing) |
|
|
Storage Humidity |
RH 95% (Non-Condensing) |
|
|
Physical Specification |
||
|
Dimensions |
19x10x2mm, details refer to the figures. |
|
|
Weight |
32 g
|
|
