PRODUCT

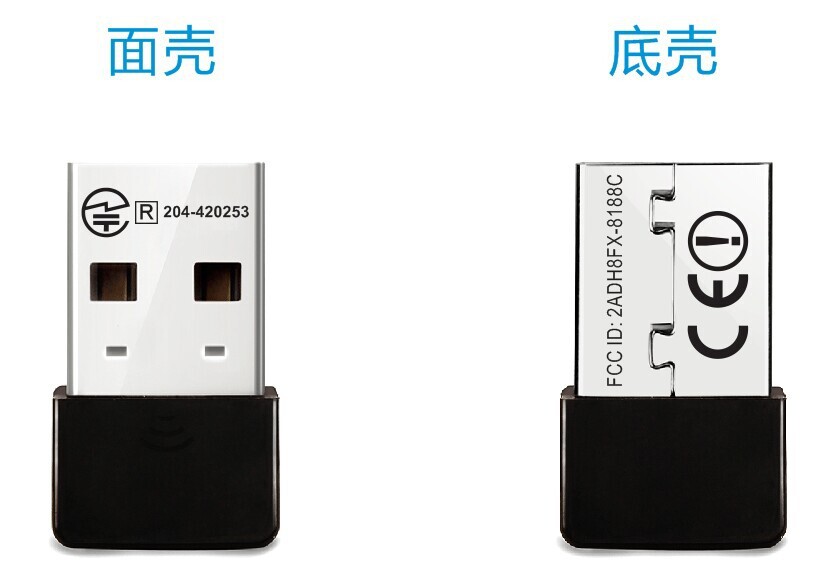

Realtek 8188 Japan Telec certified 150Mbps USB WIFI dongle
802.11 N 100mW wireless USB adapter
Chipeset: Realtek 8188cus
Host interface : USB 2.0/1.1
Peak throughput : 150Mbps
Antenna : Build in antenna
Frequency: 2412~2484 mhz
Operation system: Windows ME/98SE/2000/XP/Vista;Linux;MAC , Windows 7, Win 8/10
Japan /FCC/CE/Rohs certified
Japan Telec certified usb wifi dongle 150Mbps support Laptop,Desktop
1. Description:
FX-8188C Wireless-N USB 2.0 Adapter allows you to connect your laptop or desktop to any Wireless-N networks in your home or office. The Wireless-N (802.11n) USB 2.0 Adapter is great for those who want to upgrade older computers to be able to access the internet over a Wireless-N network.At 10 times faster than traditional Wireless-G (802.11b) networks, Wireless-N networks allow for high speed data transfers, online gaming, and lightning fast downloads. The Wireless-N USB 2.0 Adapter gives you access to all the high-speed features of Wireless-N networks on older and newer computers. Its simple and easy setup means you'll be surfing the internet, downloading movies, and e-mail in no time.
2. Features:
* Realtek RTL8188cuS Chipset
* Mini portable USB 2.0 design.
* Wireless N speed up to 150Mbps, ideal for internet surfing and online gaming.
* Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards.

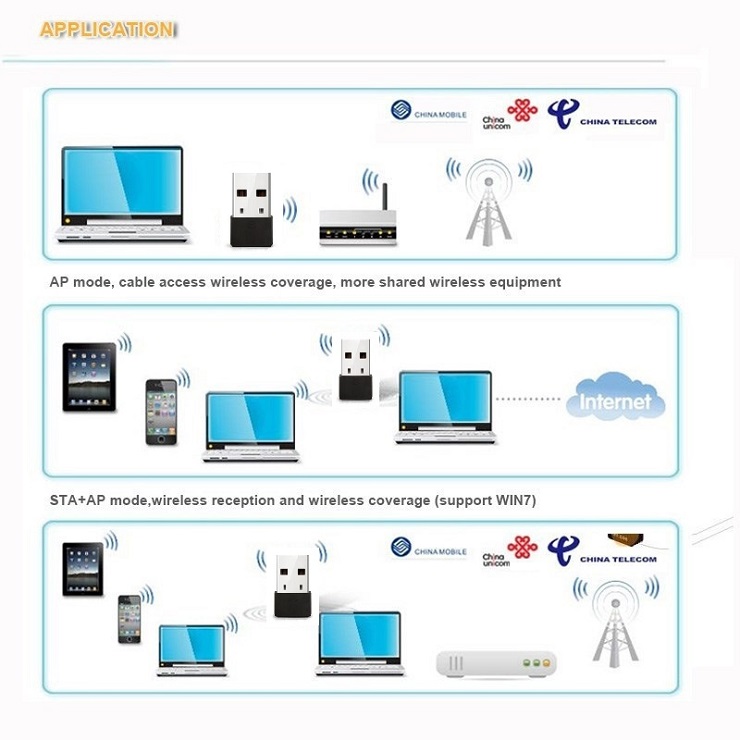

* Provides two work modes: Infrastructure and Ad-Hoc.
* MIMO technology makes wireless transmission rates up to 150Mbps wifi antenna.
* 150Mbps Wireless Wifi USB Dongle/Wireless USB Adapter/Wireless Network Card
* CCA technology enhances your signal stablility by automatically avoiding channel conflicts.
* Quick secure setup, complies with WPS for worry free wireless security.
* Supports 64/128-bit WEP, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions.
* Supports Windows 2000/XP/Vista/Linux/ Win 7/Win8 operating system.
* Supports wireless roaming technology for high-efficient wireless connections.
* Seamlessly compatible with 802.11b/g/n devices.
3. Specification:
|
Hardware |
|
|
Chipset |
RTL8188CUS |
|
Host interface |
USB2.0,Type A Connector |
|
LEDS |
Link/ Activity |
|
RF |
|
|
Antenna |
Built-in wire antenna(Peak Gain:-5Bbi) |
|
Frequency |
2412~2483.5 MHz, ISM band. |
|
Typical Transmit Power (On board-w/o Antenna) |
802.11b(CCK)11mbps;17+/-1dBm |
|
|
802.11g(OFDM)54mbps;15+/-1dBm |
|
|
802.11n:(HT20atMCS7),13+/-1dBm |
|
|
802.11n:(HT40atMCS7),13+/-1dBm |
|
Receive Sensitivity |
802.11b:-86+/-1dBmat11mbps |
|
|
802.11g:-74+/-1dBm |
|
|
802.11n:(HT20),:-70+/-1dBm |
|
|
802.11n:(HT40),:-67+/-1dBm |
|
Software |
|
|
Operation System |
Windows XP/Vista/7/8; Linux; Mac OS X |
|
Security |
WEP, WPA, WPA2,WAPI,QoS(802.11e and WMM) |
|
Operation Conditions |
|
|
Voltage/Current Range* |
DC 5.0V ± 5% |
|
Operating Temperature |
-10°C - 60°C |
|
Storage Temperature |
-20°C - 80°C |
|
Operating Humidity |
RH 95% (Non-Condensing) |
|
Storage Humidity |
RH 95% (Non-Condensing) |
|
Physical Specification |
|
|

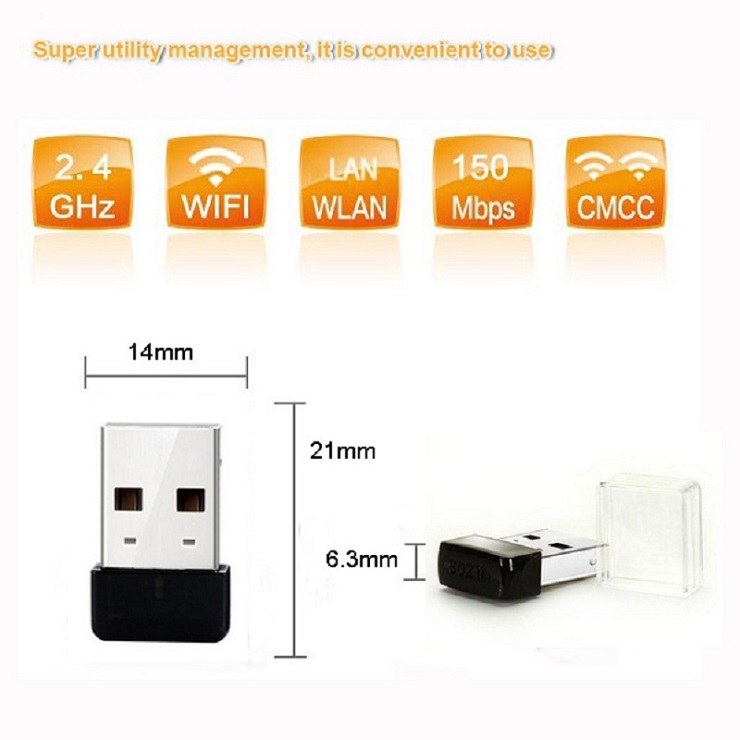

Dimensions |
24.7x13.8x6.5 mm |
|
Weight |
3.5g |
