RT5370 150Mbps Wlan USB Wifi Stick For Digital Receiver Aura HD Vu+ LG Amiko Ferguson Edison MAG254 250 275 322 324 420 424 425 IPTV OTT Box

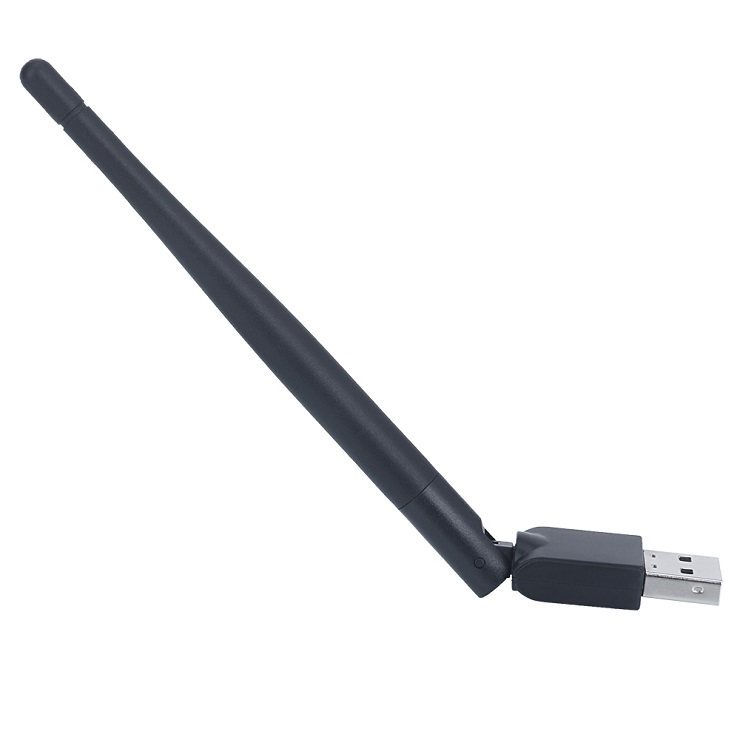

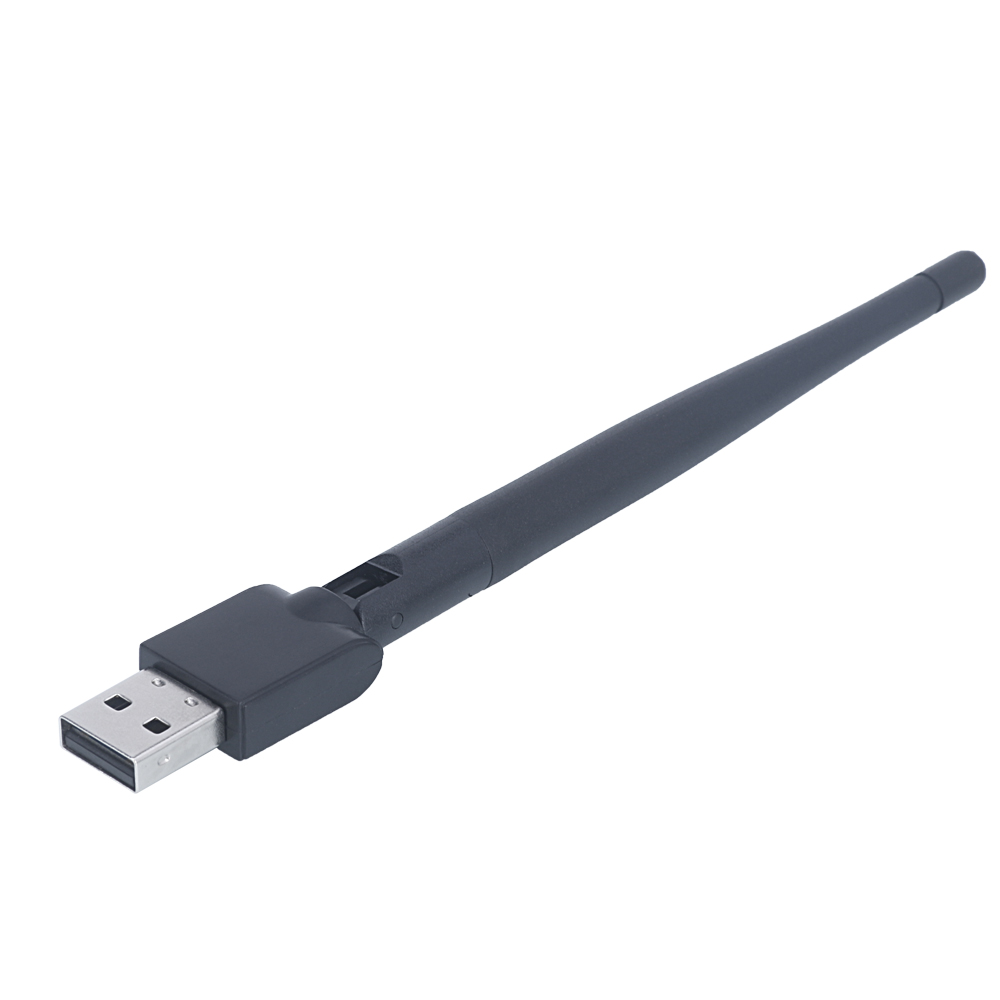

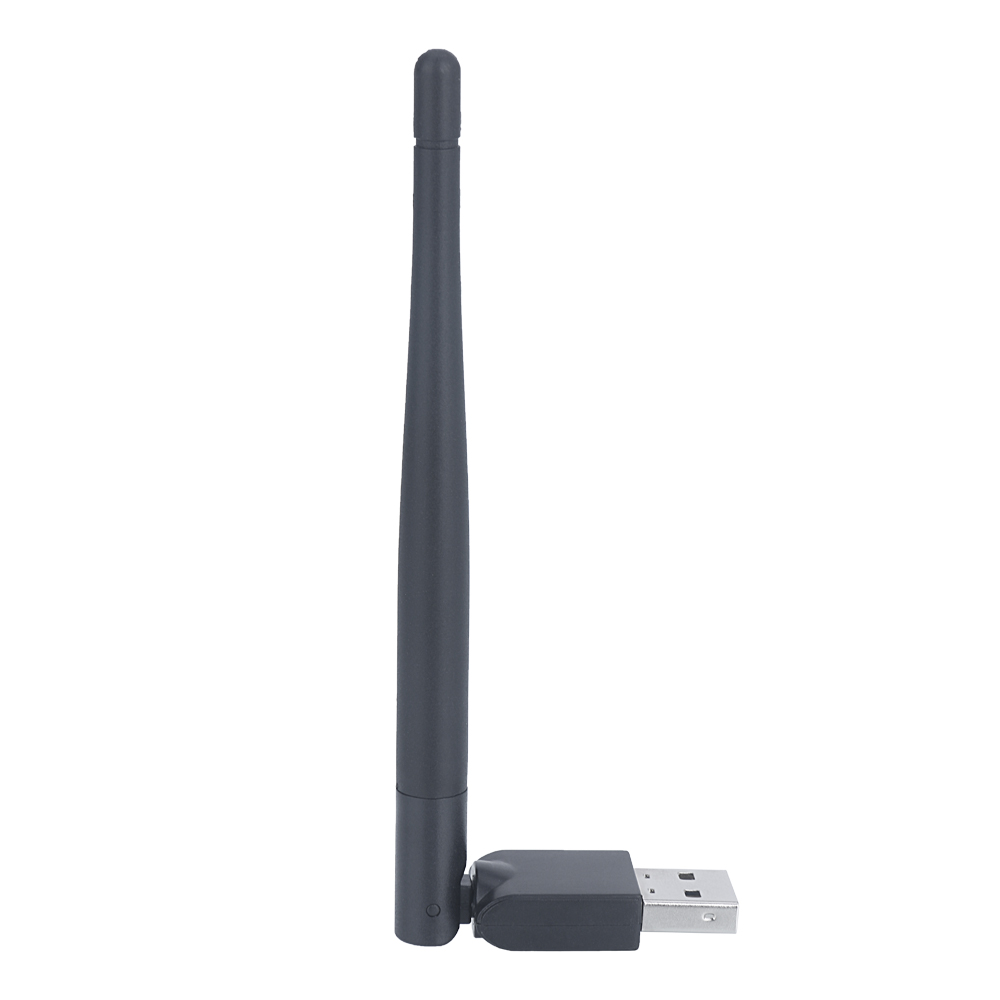

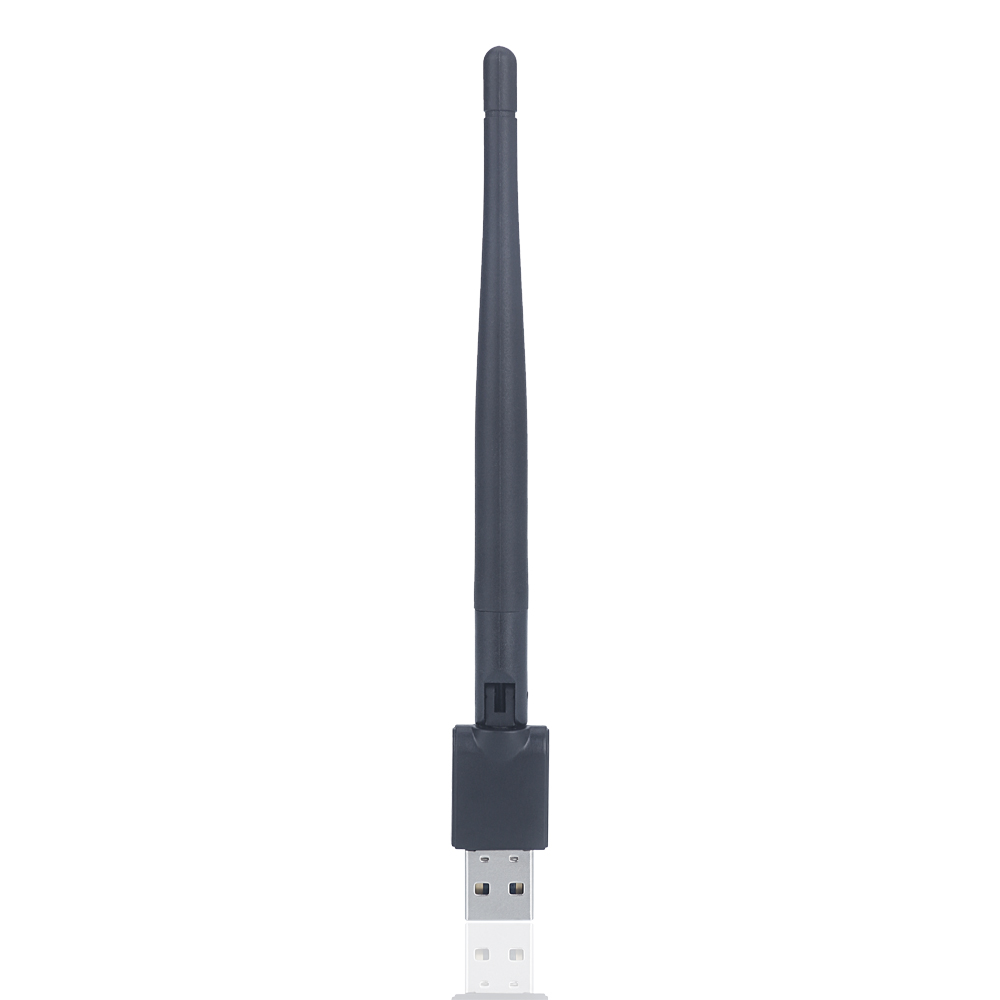

802.11 N 100mW wireless USB adapter with External antenna
Chipeset: Ralink 5370
Host interface : USB 2.0/1.1
Peak throughput : 150Mbps
Antenna : 2Dbi external antenna
Frequency: 2412~2484 mhz
Operation system: Windows ME/98SE/2000/XP/Vista;Linux;MAC , Windows 7, Win 8/10
Plug and play for all kinds of digital satellite receiver/ IPTV /Mag /dreambox/skybox box) Hot !!!!! AuraHD air for MAG254 250 322 324 420 425
CE/Rohs available
RT5370 150Mbps Wlan USB Wifi Stick For Digital Receiver Aura HD Vu+ LG Amiko Ferguson Edison MAG254 250 275 322 324 420 424 425 IPTV OTT Box
1. General description:
FX-5370TH wifi adapter with external antenna allows you to connect your laptop or desktop to any Wireless-N networks in your home or office. Its simple and easy setup means you'll be surfing the internet, downloading movies, and e-mail in no time. With 2Dbi/5Dbi external antenna, it can receive wifi signal from long distance. Thus strengthen the wifi signal very easily. What's more,This item also provide Support Skybox, Openbox, Raspberry Pi, Wifi Reciver soft AP function.
2. Main features:
* Realtek RTL5370 Chipset
* Mini portable USB 2.0 design.
* External 2Dbi or 5Dbi antenna optional to meet your various demand.
* Wireless N speed up to 150Mbps, ideal for internet surfing and online gaming.
* Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b standards.
* Provides two work modes: Infrastructure and Ad-Hoc.
* MIMO technology makes wireless transmission rates up to 150Mbps wifi antenna.
* CCA technology enhances your signal stablility by automatically avoiding channel conflicts.
* Supports 64/128-bit WEP, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions.
* Supports WIN2K, XP, VISTA, WIN7, MAC, LINUX operating system.
* Perfectly match with Raspberry PI, Banan PI, Skybox, STB,IPTV, Navigation system, 3D printer,AuraHD air for MAG254 250 275 322 324 420 425
* Supports wireless roaming technology for high-efficient wireless connections.
* Seamlessly compatible with 802.11b/g/n devices.
3. Datasheet and Specification:
|
Hardware |
||
|
Main Chipset |
Realtek RT5370 |
|
|
Host interface |
USB2.0, type A connector |
|
|
LED |
Link/ Activity |
|
|
RF |
||
|
Antennas |

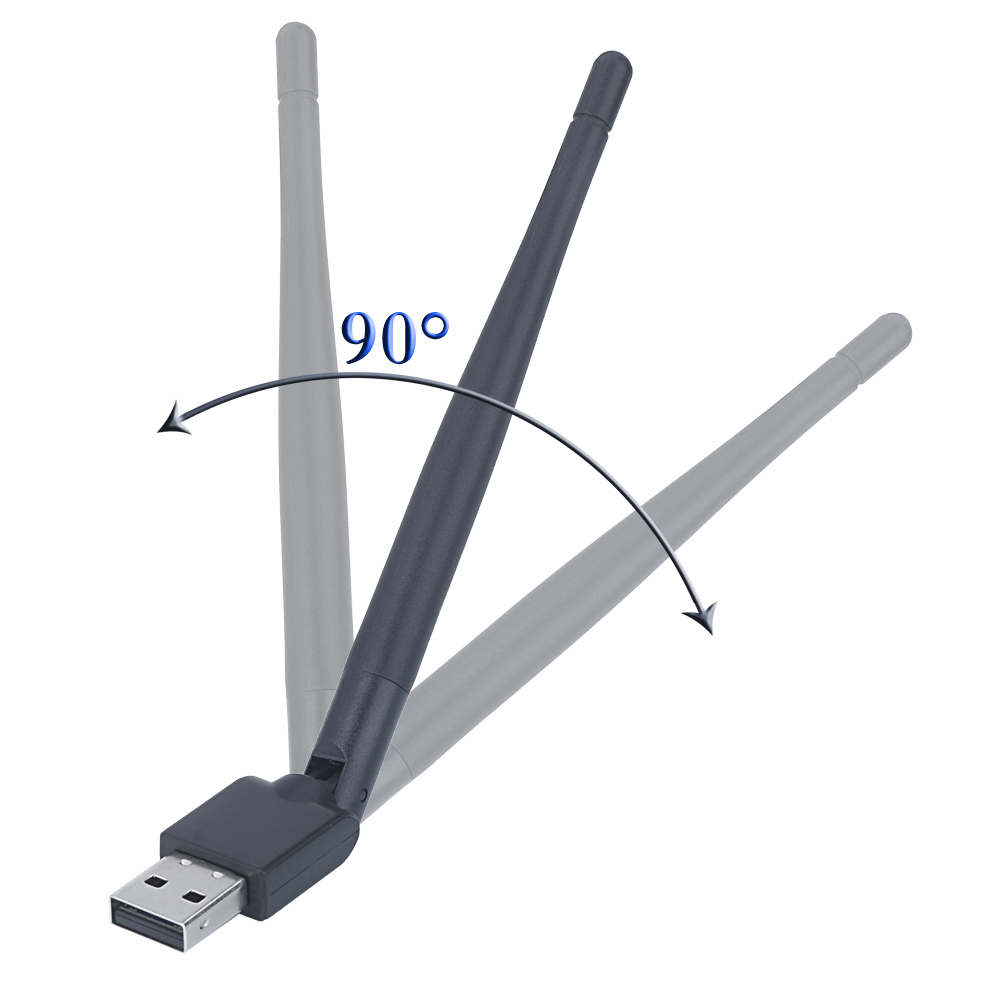

90 degree rotatable 2dBi Omni antenna |
|
|
Operation Frequency |
2412~2483.5 MHz |
|
|
Typical Transmit Power (onboard value) |
802.11b (CCK) 11Mbps: 18+/-1dBm |
|
|
802.11g (OFDM) 54Mbps: 15.5+/-1dBm |
||
|
802.11n (HT20atMCS7), 14+/-1dBm |
||
|
802.11n (HT40atMCS7), 14+/-1dBm |
||
|
Receive Sensitivity |
802.11b: -88+/-1dBm at 11Mbps |
|
|
802.11g: -76+/-1dBm |
||
|
802.11n (HT20), -72+/-1dBm |
||
|
802.11n (HT40), -69+/-1dBm |
||
|
Software |
||
|
Operation System |
Windows XP,Vista,Win7 ;Mac OS X and Linux |
|
|
Security |
WEP, WPA,WPA2,WAPI,QoS (802.11e andWMM), |
|
|
Operation Conditions |
||
|
Voltage Range |
DC 5.0 V ± 5% |
|
|
Current Range |
140+/-5mA at 802.11g, 54Mbps; 185+/-5mA at802.11b , 11Mbps |
|
|
Operating Temperature |
-10°C - 60°C |
|
|
Storage Temperature |
-20°C - 80°C |
|
|
Operating Humidity |
RH 95% (Non-Condensing) |
|
|
Storage Humidity |
RH 95% (Non-Condensing) |
|
|
Physical Specification |
||
|
Dimensions |
88x58.5x16.5mm, details refer to the figures. |
|
|
Weight |
9.8 g
|
|
