PRODUCT
1. Description:
300Mbps 2T2R PCI-E Adapter is fully compliant with IEEE 802.11n 2.0 specification; it allows users to connect to 802.11n wireless networks up to 300 Mbps. It is also backward-compatible with IEEE 802.11b/g wireless network at 11/54 Mbps respectively. This PCI-E adapter includes a convenient utility software for scanning available wireless networks and an option to save profiles of preferred networks at user’s choice. Configurable wireless security and encryption software are also included.
2. Features:
- RTL8192EE/RT5392 Chipset
• Ideal for Surfing the Web, Sharing Files, Streaming Video, and Playing Online Games
• Up to 6 Times Faster than Wireless G
• Up to 300 Mbps Transfer Speed
• Protect Your Data with Advanced Wireless Security Features
• Cover Greater Area with Multiple-Input-Multiple-Output Technology
• Comply with PCI Express Base specification revision 1.1
• Compatible with IEEE 802.11n 2.0 specification
• Provide wireless speed up to 300Mbps maximum PHY data rate using 40MHz bandwidth and 144.4Mbps maximum PHY data rate using 20MHz bandwidth
• Support 2x2 Multiple Input Multiple Output (MIMO) technology for extended reception, robustness and exceptional throughput
• Backward compatible with IEEE 802.11g at 54Mbps
• Maximum reliability, throughput and connectivity with automatic data rate switching
• Support IEEE 802.11i (WPA, WPA2), open, shared key and pair-wise key authentication services
• Support wireless data encryption with 64/128-bit WEP standard for security
• Support IEEE 802.11e QoS Enhancement (WMM, WMM-SA client mode)
• Cisco Compatible eXtensions (CCX) for WLAN devices

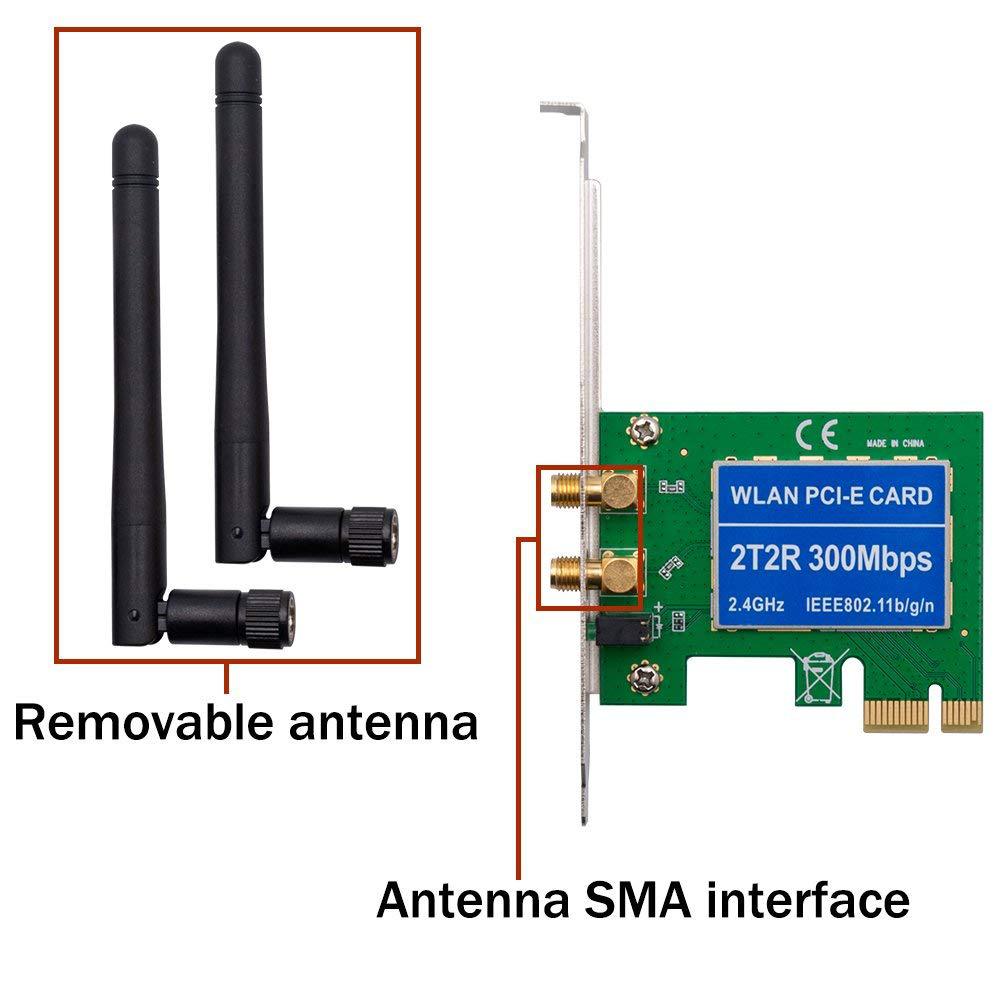

• Two 2dBi or 5dBi dipole antennas with R-SMA connectors
• Driver available in Windows® XP, Windows Vista® and Windows® 7
• Simple user setup & diagnostics utilities
3. Specification:
|
