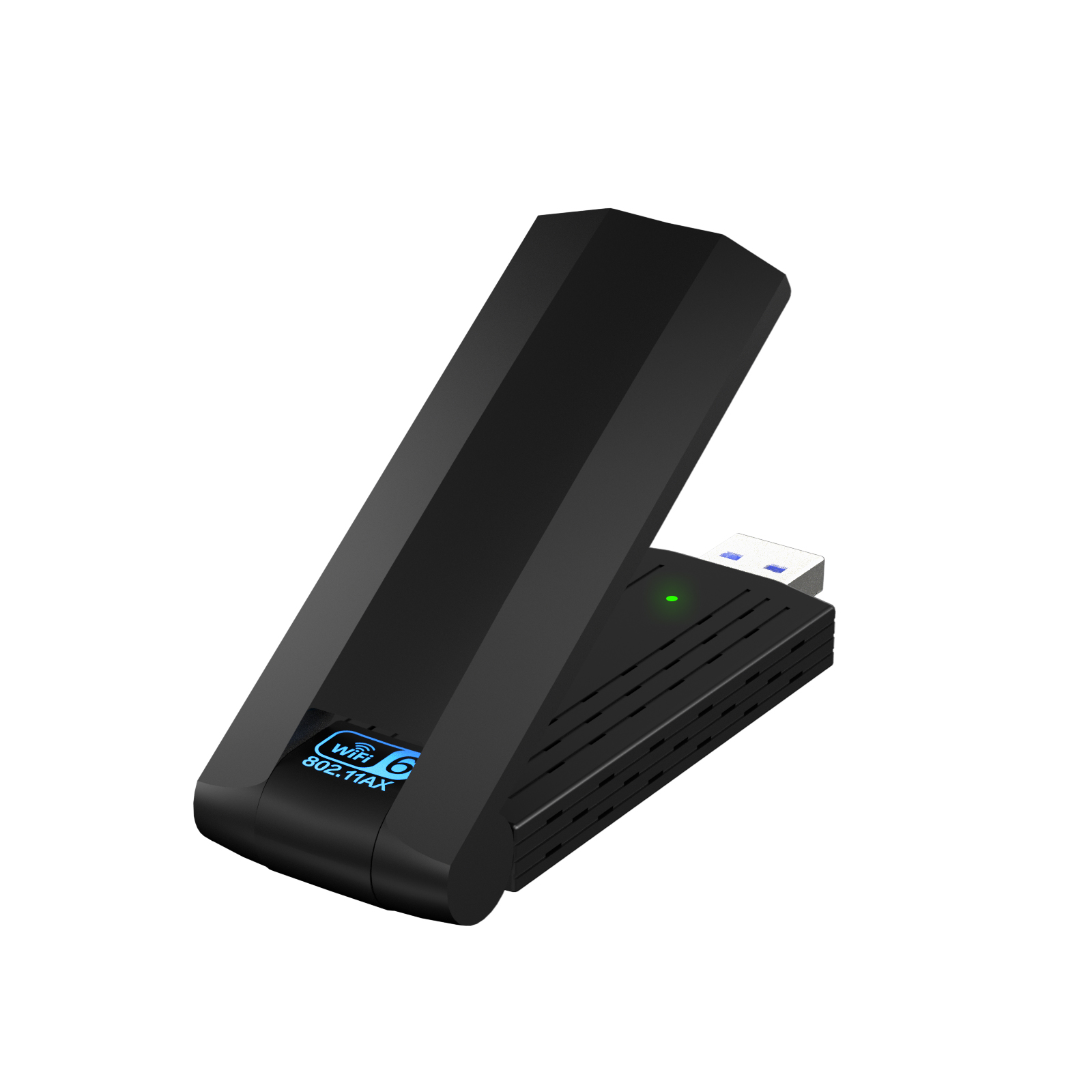

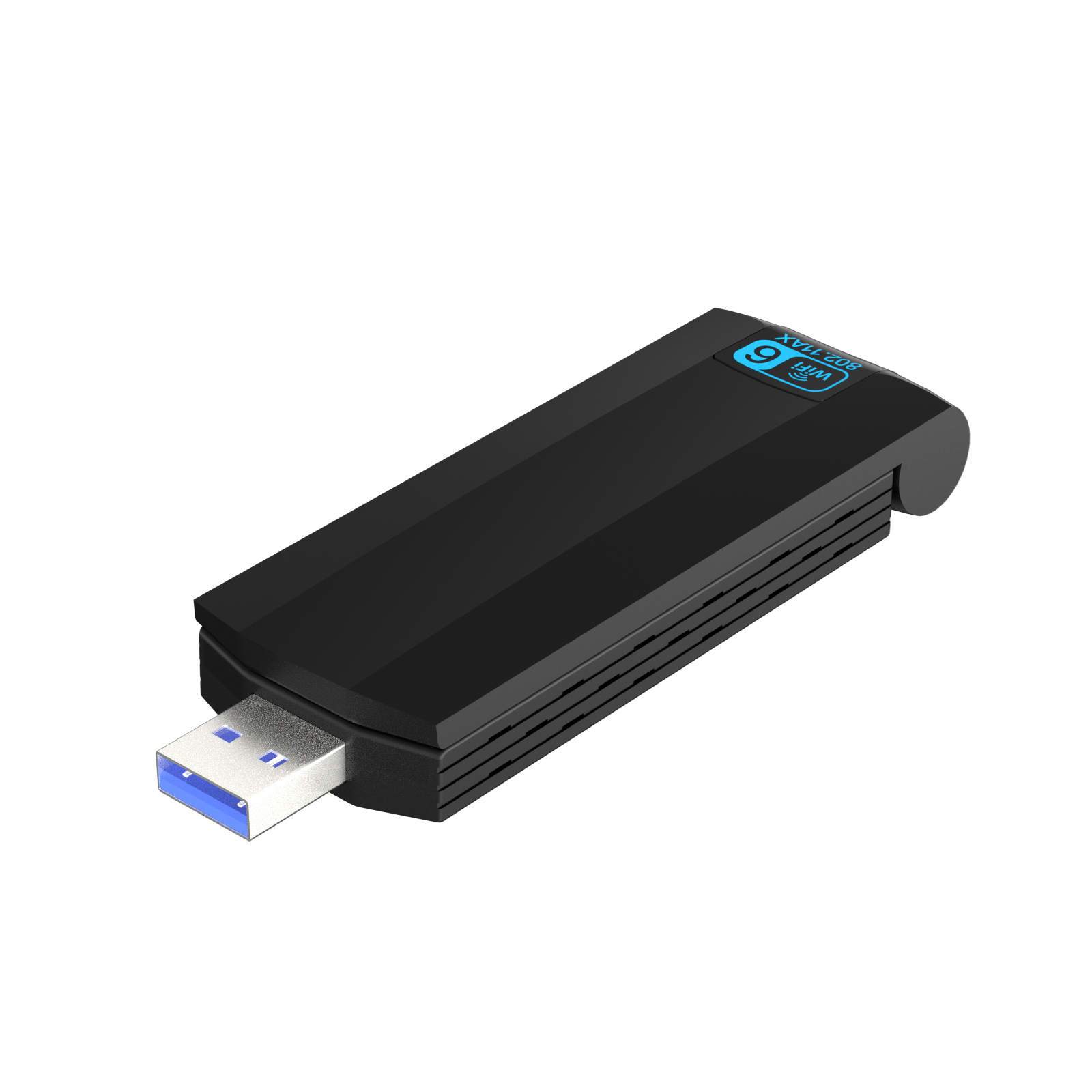

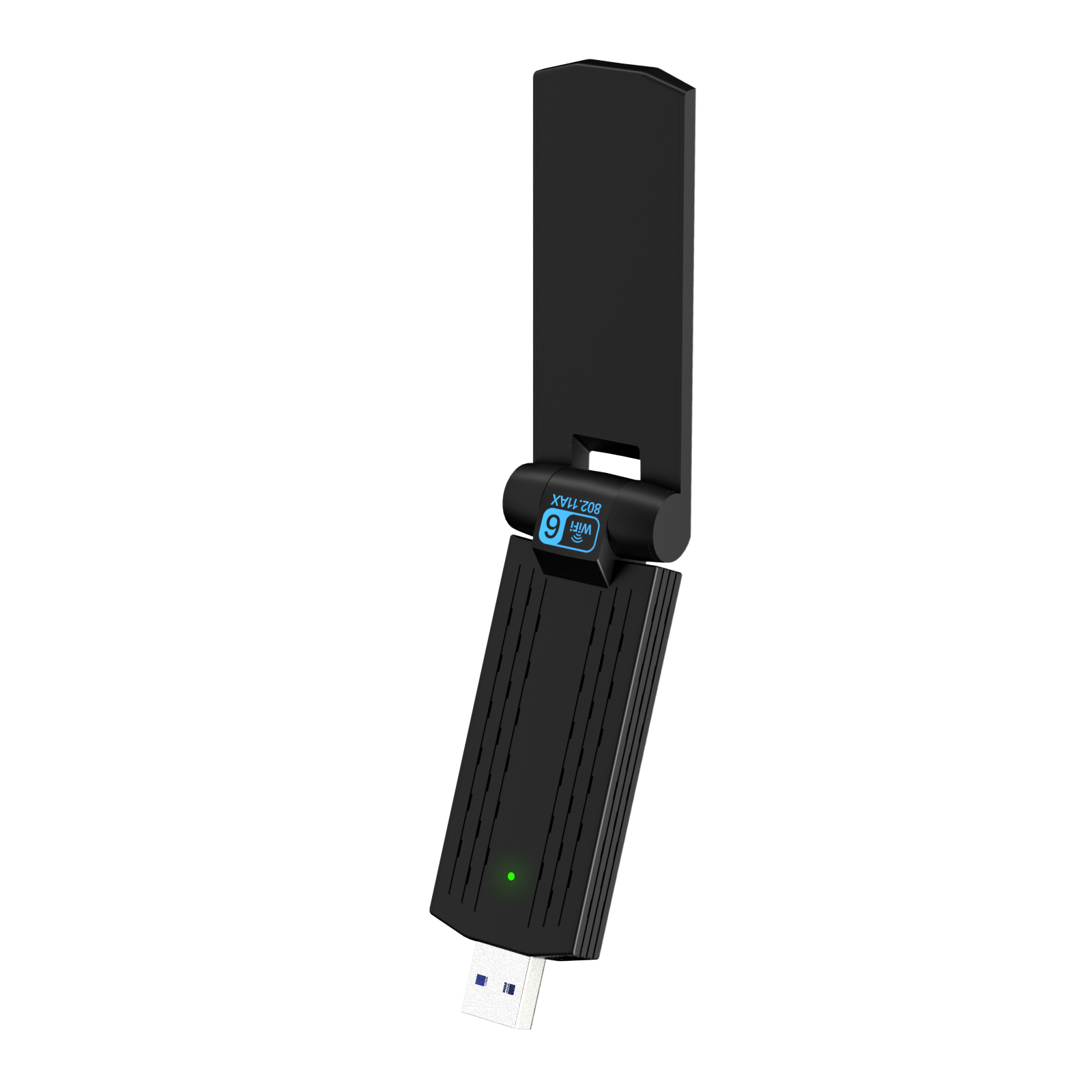

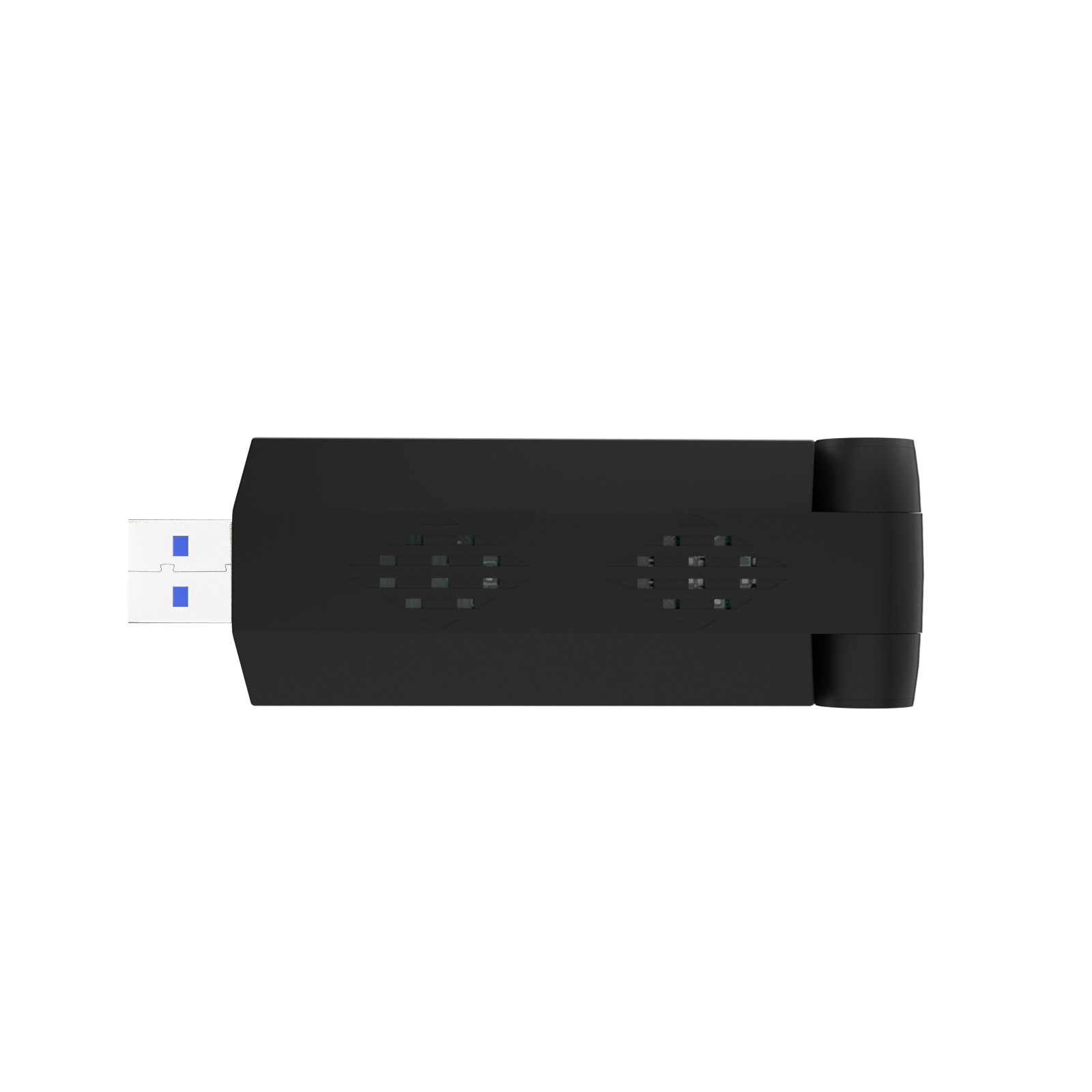

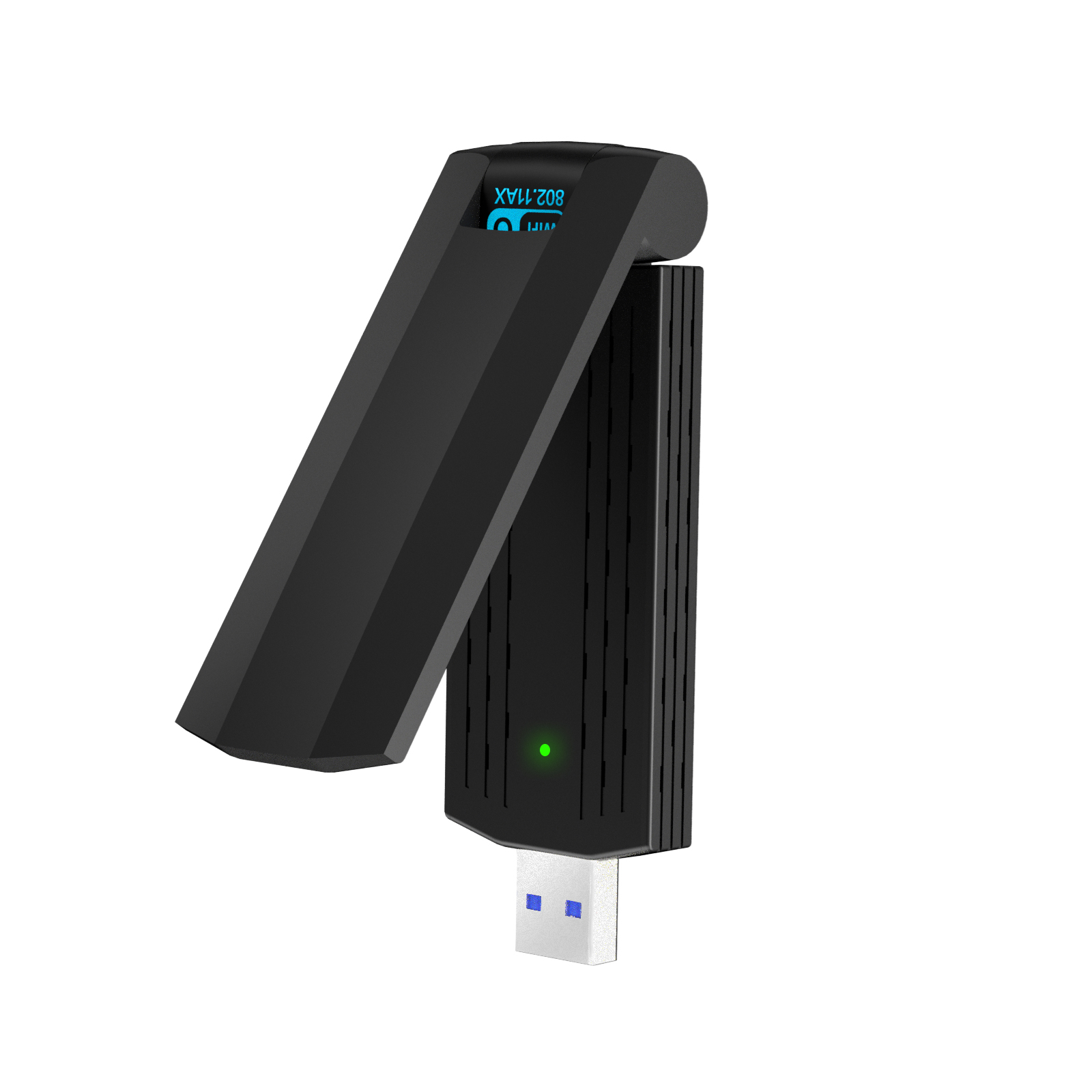

WiFi 6 USB Adapter AX1800Mbps Dual Band 2.4/5G WiFi Adapter Wireless Dongle Support windows 10/11 for Iot/Cosumer/Industrial
1800M 11AX/AC dual band
Chipset: MT7921 or Realtek8832 for optional
Free Driver or CD driver for optional
IEEE 802.11 ax/ac/a/n/b/g
5dBi SMA Antenna*2
Support Windows 10/11(64bit) /Linux/MacOS
Dual-Band optional(2.4GHZ/574Mbps, 5.8GHZ/1201Mbps)
1. Description:
Wireless AX1800Mbps Dual Band Adapter based on 802. 11ax technology delivers next generation WiFi speeds. The device enables multiple HD video streams throughout and online gaming. With speed up to 1201Mbps(5G)+ 573.5Mbps(2.4G) and dual band technology, this WiFi 6 usb adapter effectively avoid interference, ensuring blistering wifi speeds and reliable network performance.
---Compliant with IEEE 802. 11b/g/n/a/ac/ax standards
--Support 2.4G/5G dual band connection, data rate of up to 1201Mbps at 5GHz band, 573.5Mbps at 2.4GHz
band, ideal for HD video streaming, on-line gaming,music download,etc.
---Compatible with Windows 10/11 operation systems
---Capable of up to 64/128-bit wep,wpa,wpa2,wpa3,wpa-psk,wpa2-psk encryption With CCA technology channel interference is effectively avoided
---With MIMO OFDM/OFDMA technology, data throughput and range are highly improved
---Smart AP switch function, easily share network resource
---Support Ad-Hoc and Infrastructure working modes
---User-friendly setup and hassle-free configuration
Datasheet:
|
Chipset |
RTL8832BU OR MT7921 |
|
Wireless Standards |
IEEE 802. 11ax/ac/a/n/g/b |
|
Interface |
USB2.0/3.0 |
|
RF Frequency |
2.4~2.4835GHz/5. 15~5.825GHz |
|
Data Rate |
11ax: up to 1201Mbps(5G); 573.5Mbps(2.4G) |
|
11ac: up to 867Mbps(5G); 300Mbps(2.4G) |
|
|
11n:up to 300Mbps |
|
|
11g:54/48/36/24/18/12/9/6Mbps auto fallback |
|
|
11b:11/5.5/2/1Mbps auto fallback |
|
|
Radio Channels |
14 |
|
TR |
2T2R |
|
Modulation |
802. 11ax: MIMO OFDM/OFDMA |
|
802. 11ac: MU-MIMO |
|
|
802. 11a: 5G OFDM |
|
|
802 11n: MIMO-OFDM/CCK/DSSS |
|
|
802. 11g: CCK/DSSS/OFDM |
|
|
802. 11b: CCK/DSSS |
|
|
RF Output Power |
2 4G:19dBm(Max ) |
|
5G: 18dBm(Max ) |
|
|
Antenna Type |
2 * 3.5 DB dual Antenna |
|
SIZE |
88.15*30*14.3mm |
|
LED Indicator |
Link/Active |
|
Operating Environment |
Operating Temperature:0℃~70℃ |
|
Storage Temperature:-55℃~125℃ |
|
|
Operating Humidity:10%~90%RH (Non Condensing) |
|
|
Storage Humidity:5%~90%RH (Non Condensing) |
|
|
Operating System |
win10 / win11 MacOS:10.11~10. 15 Linux: (kernel 3.1. 13 ~ 5. 9) |
