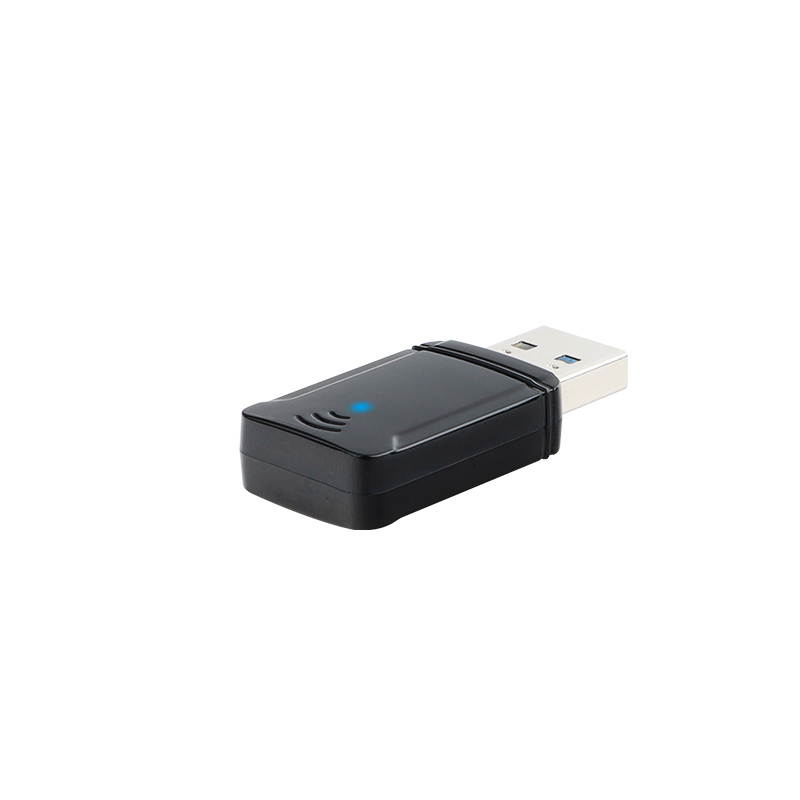

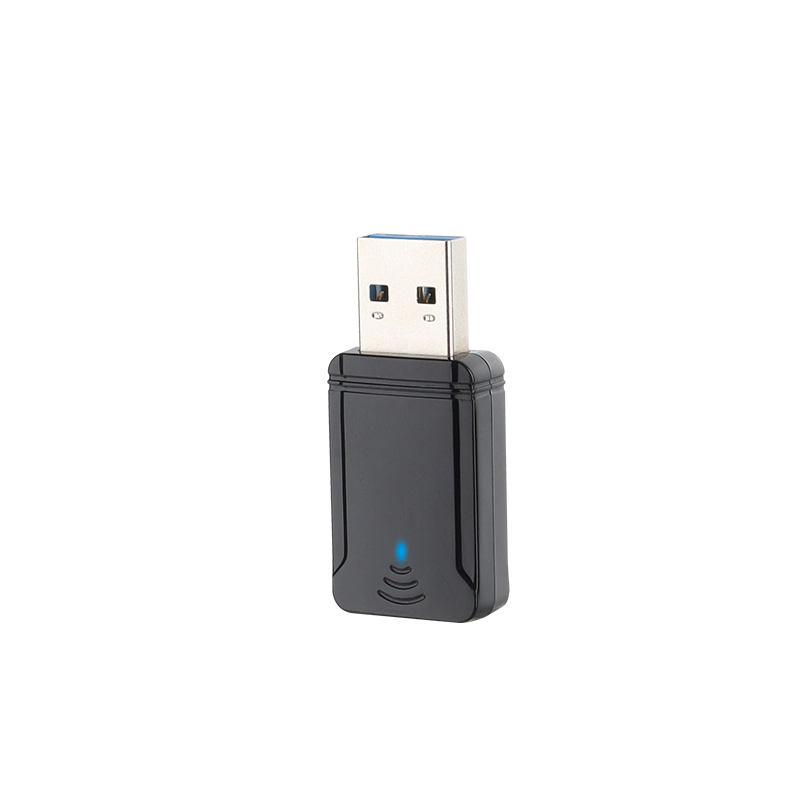

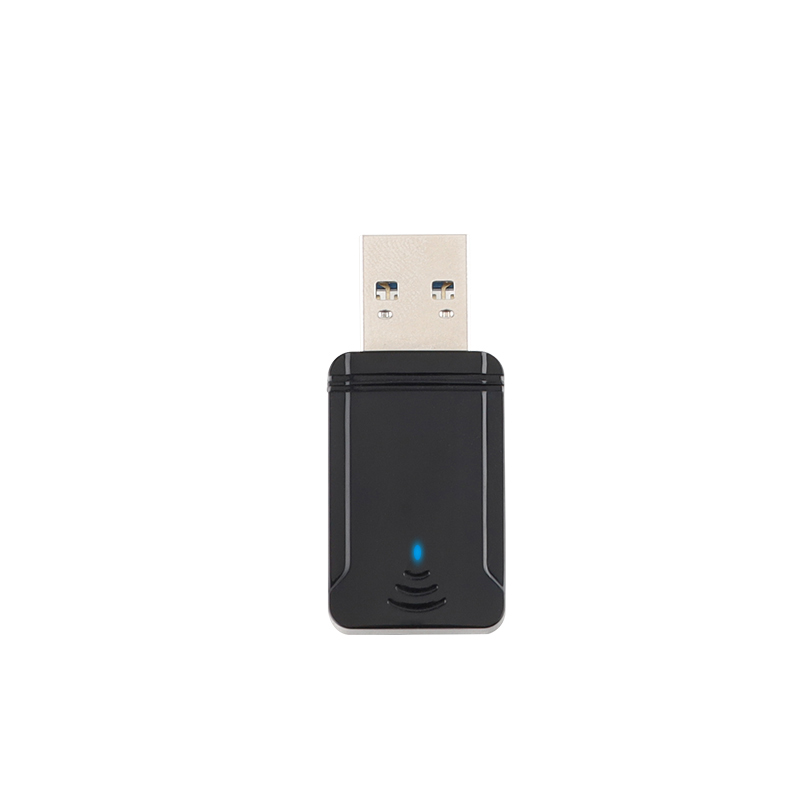

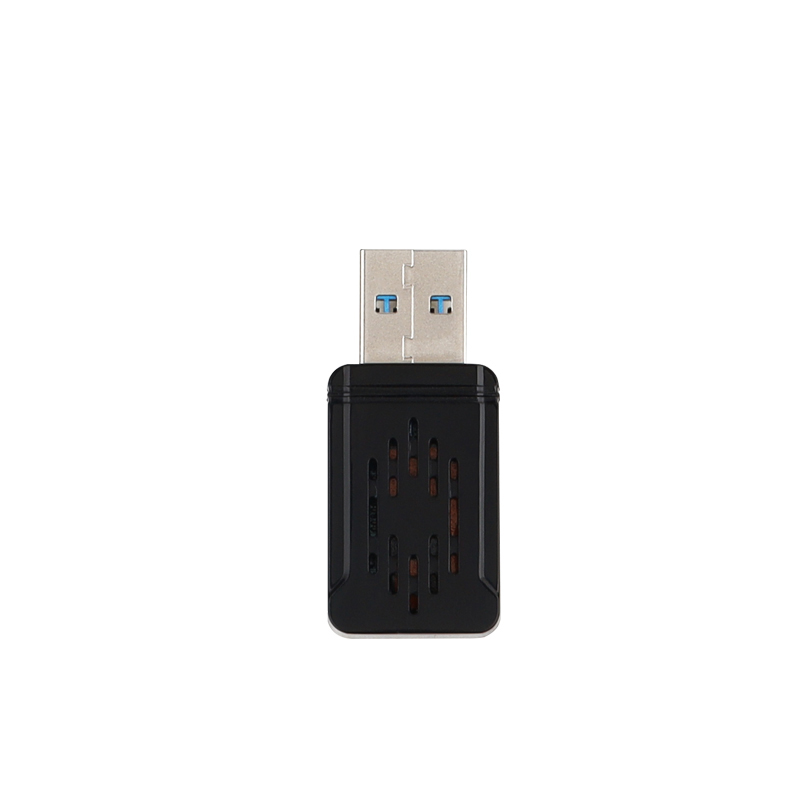

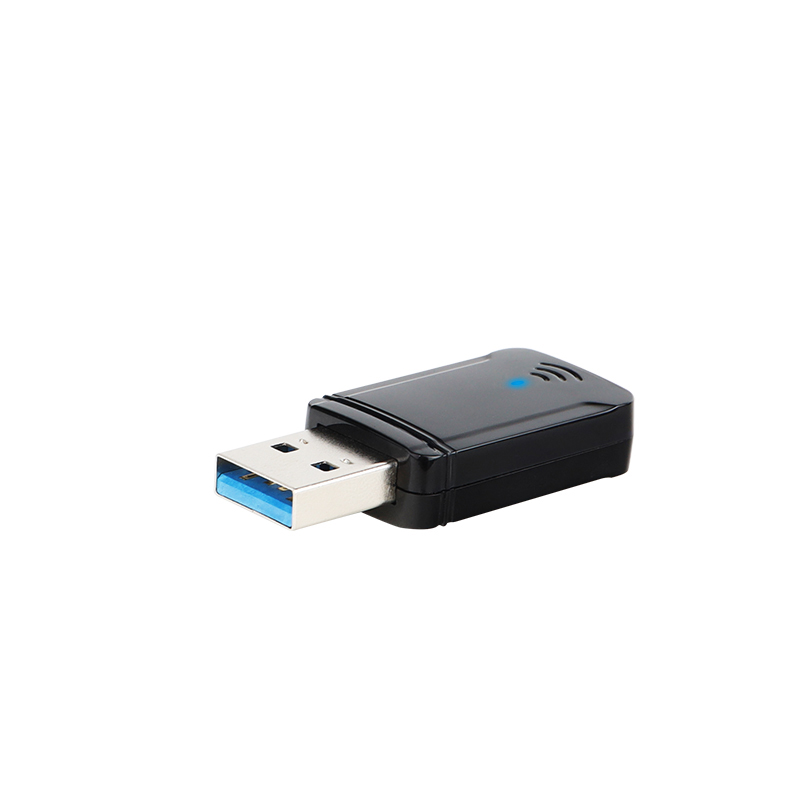

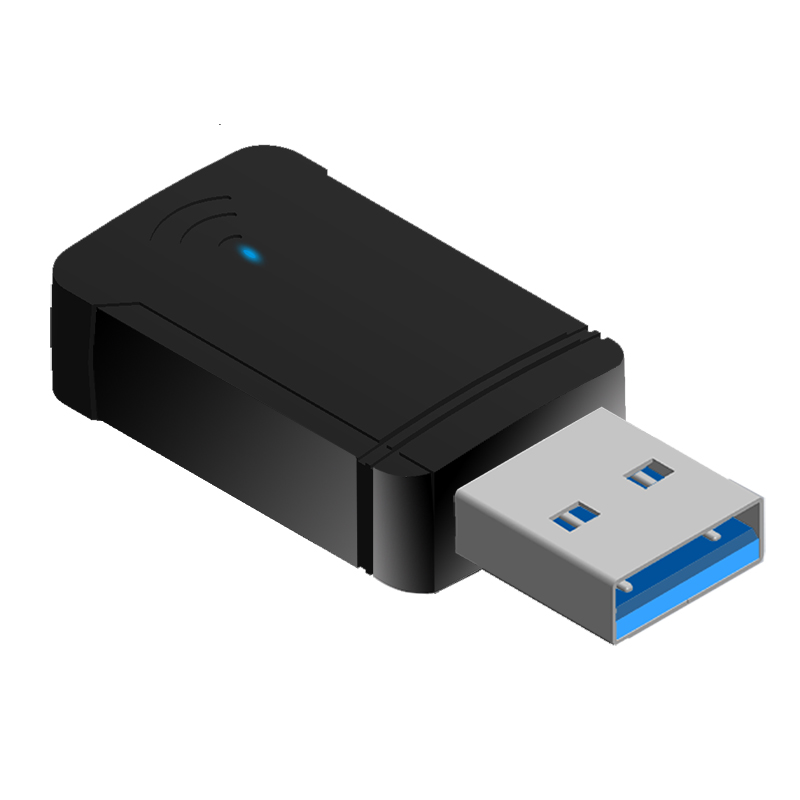

RTL8812BU 802.11 AC 1300Mbps Dual Band 5G&2.4Ghz Mini USB WIFI Adapter with USB 3.0
1300M 11AC dual band
IEEE 802.11 ac/a/n/b/g
Chipset: RTL8812BU
3dBi SMA Antenna
USB Port: 3.0 fast data transfer
2.4G：400Mbps,5G:867Mbps
Windows XP / Vista / Win 7/Win8/Win10 Mac/Linux
1300Mbps Dual Band high power WiFi Adapter allows you to get speedy next generation Wi-Fi connections,
by connecting it to the USB3.0 (backward compatible with USB2.0/1.1) interface of your PC,
you can establish up to 867Mbps connection on 5GHz radio or 400Mbps connection on 2.4GHz radio.
Features:
· Ultra-fast 1300 (867+400)Mbps wireless speed with 802.11ac if your wireless router speed reaches 1900Mbps.
· Dual Band connections for lag-free HD video streaming and gaming
· Super Speed USB 3.0
· Easy wireless security encryption
· Equipped with a USB docking for flexible deployment
Specifications:
|
Chipset |
Realtek RTL8812BU |
|
|
Wireless Standards |
IEEE 802.11ac/a/n/g/b |
|
|
Interface |
High speed USB3.0 interface |
|
|
Data Rate |
802.11ac: up to 867Mbps |
|
|
RF Frequency |
2.4-2.4835GHz; 5.150-5.825GHz |
|
|
Radio Channel |
1 ~ 14channels |
|
|
Antenna Type |
2.4G and 5G Antenna |
|
|
RF Output Power |
2.4G: 17dbm±2dbm; 5G: 14dbm±2dbm |
|
|
Modulation |
802.11ac: MU-MIMO |
|
|
Data Security |
64/128-bit WEP Encryption, WPA/WPA2, WPS/802.1X |
|
|
LED Indicator |
Link/Active |
|
|
Operating System |
windowsXP/win7/vista/win8/win10 Android 1.6 ~ 2.3, 4.0 ~ 7.0 |
|
|
OperatingTemperature |
0℃to 50℃, 20% ~ 85%RH |
|
|
Storage Temperature |
-10℃to 65℃, 10% ~ 90%RH |
|
|
Hardware |
||
|
Size |
6*2.5*11.5MM |
|
|
Weight |
35g (bare adapter with antenna) |
65g Retail package |
