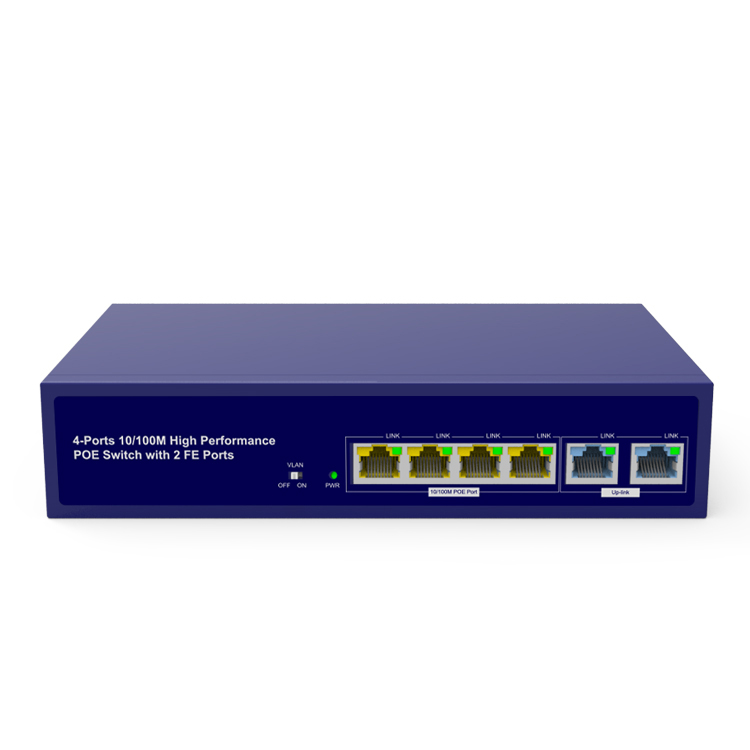

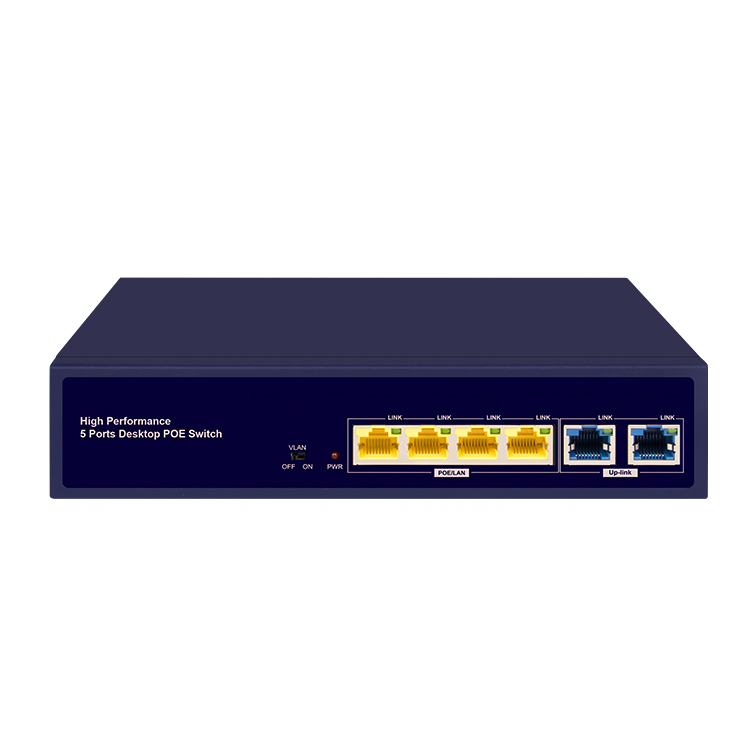

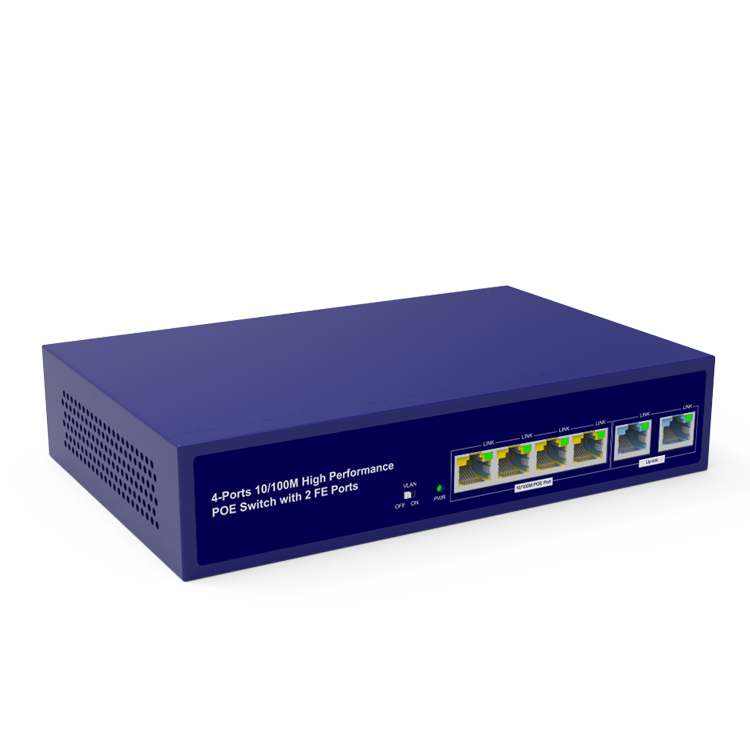

6 ports 100Mbps 802.3af Fast POE Switch with Iron housing and 2 UP-Link ports for CCTV/Security

Specifications

Model

M-0402 FEB(65W)

Standard

1、IEEE802.3 10 BASE-T Ethernet

2、IEEE802.3u 100 BASE-TX Fast Ethernet

3、ANSI/IEEE 802.3 NWay Auto-negotiation

4、IEEE802.3af

5、IEEE802.3at

Interface

1、4*10M/100M RJ45 ports support POE power supply

2、2*10M/100M uplink port

Port Properties

1、Connector: RJ-45

2、Supports 10M/100M Mbit/s rate

3、Supports half-duplex, full duplex, self-negotiation

working mode

4、Support MDI/MDI-X Self-adaptation

Network Cable

1、10/100 BASE-TX:

2、3/4/5 twisted pair, supports maximum transmission distance of 100 meters

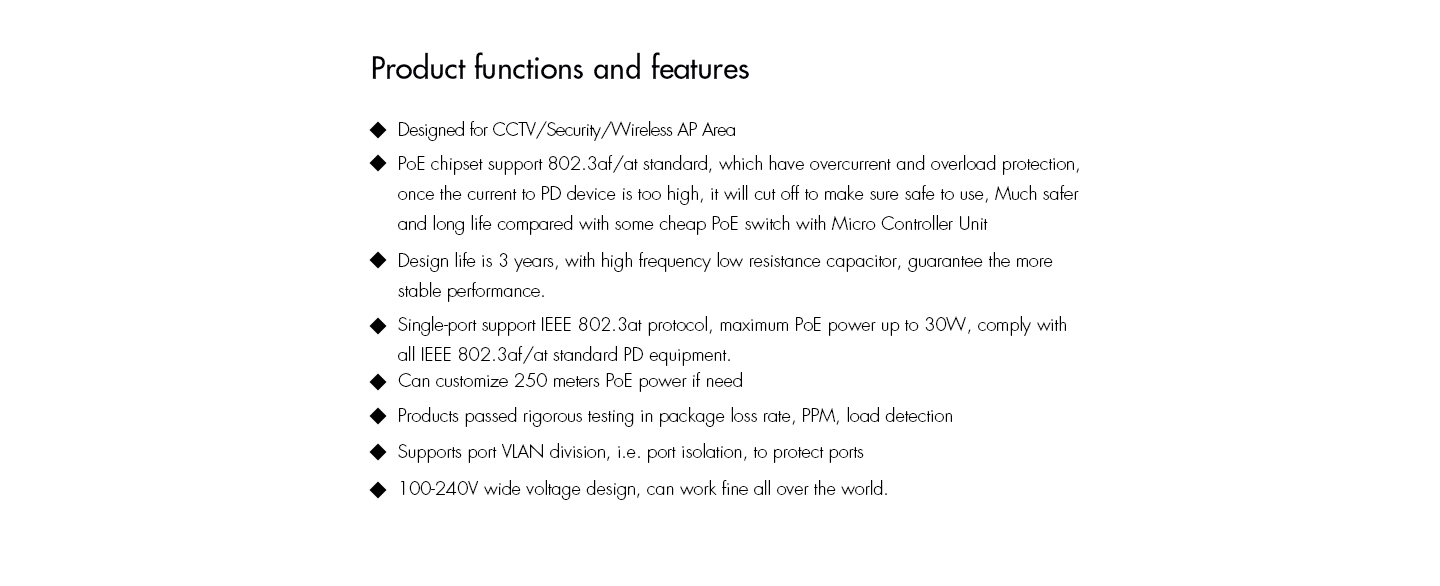

Features

1、 With On/Off switch to enable/disable VLAN (port isolation)

2、On/off switch can switch to 250M long-distance power supply in optional.

LED Light

1、LINK    Each port: Link

2、POWER   Each device:Power

Backplate Bandwidth

1.2Gbps

Forwarding Rate

10Mpbs：14800pps

100Mpbs：148000pps

Switch Mode

Storage and Forwarding Mode

MAC Address Table

1、MAC Address Auto-Learning and Auto-Aging.

2、Max MAC address table: 2K

POE+ Power Supply

Single port maximum power: 30W

Whole device power: 96W,

Maximum overload protection power: 92W

Size

210mm*136mm*44.5mm

Input Power

65W/96W

AC 100 V～240V  50/60 HZ

Working Temperature

0℃~40℃

Heat Dissipate

Natural cooling
